CHOKING BALUN FOR HF BANDS

Choking balun for HF and upper MF bands. (1.5MHz - 30MHz).


Requiring a choking balun to isolate the potential feed-line common mode RF on the coax cable for HF/MF bands 1.5MHz - 30MHz. A simple coax cable wound on to a ferrite toroidal core was chosen.

  • Prevents unwanted RFI by eliminating feedline common mode currents and radiation
  • All power goes to the antenna, improving efficiency
  • Reduces noise or EMI picked-up by your coax shield
  • Power is balanced between driven elements of antenna







Figure 1 Schematic of the 1:1 choking balun



Type  Choking Balun
Ratio 1:1
Frequency Range 1.0 ~ 30MHz
Choking Impedance 1k Ohms (-21dB) minimum. Ref: Figure 3
Core Used FT240-43 Ferrite Toroid Core
Number of turns 14 (7 + 7). Ref: Figure 2
SWR 1:1 Ref: Figure 5







Figure 2 Winding details of the 1:1 choking balun



Construction



The construction was simply to wind 14 turns of RG58 coax onto a FT240-43 Ferrite Toroid Core. The result of 14 turns achieved an average of 40uH lumped value inductive reactance to common mode RF currents from approximately 1.0MHz to 30MHz.

Parts list.

  • FT240-43 Ferrite Toroid Core
  • About 1.0mtr of RG58 coax.



Photo 1 Choking balun assembled









Testing



The AIM 4170C antenna analyser recorded in Figure 3 show the Impedance as measured in the coax shield presents a minimum of 1000 Ohms from 1.0MHz to about 30MHz and much greater for the 1.8MHz to 14MHz amateur radio bands.



Figure 3 The evaluation of the choking impedance of the balun over a bandwidth from 1.0MHz- 30MHz.

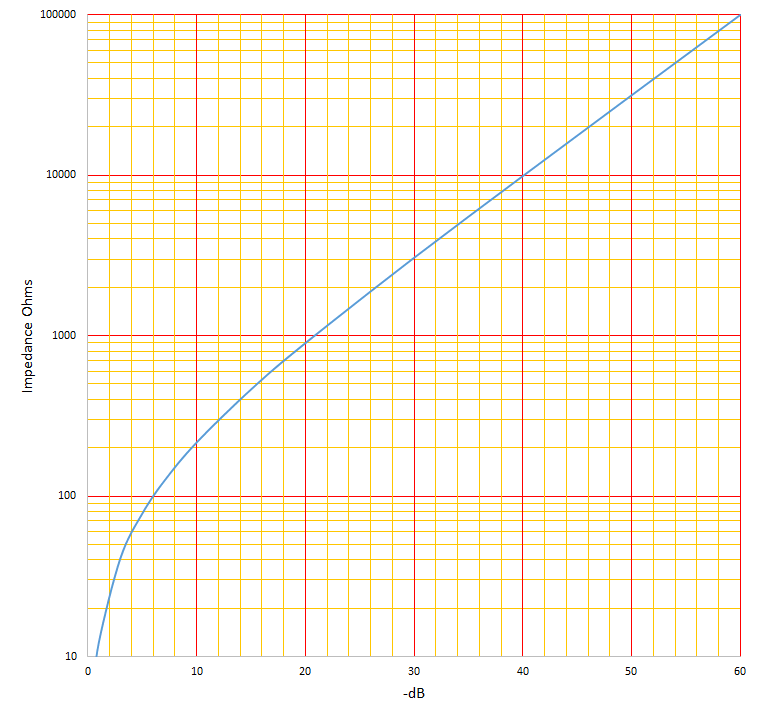

Figure 4 Choking impedance to dB of choking. 20dB attenuation should be considered the minimum.

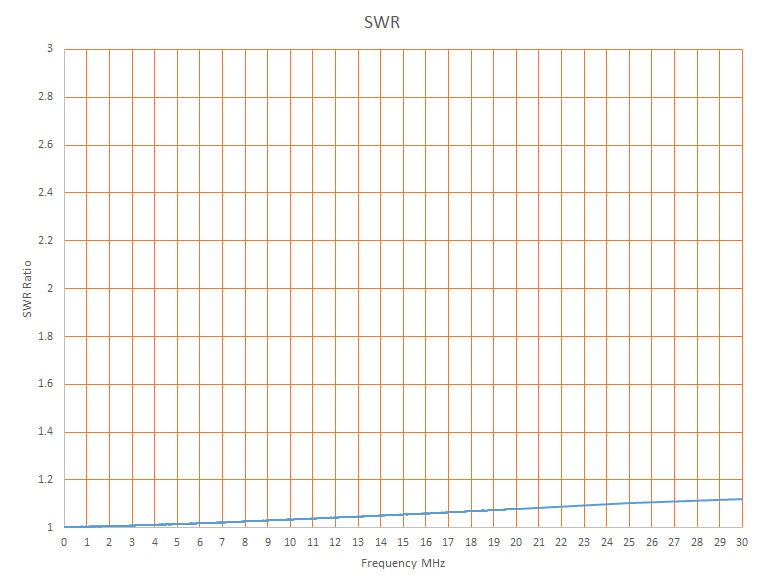

Figure 5 SWR.from 0.1MHz- 30MHz
