1:2.5 VOLTAGE BALUN

1:2.5 voltage balun using a FT140-43 Ferrite Toroid Core for 0.5MHz to 30MHz. Completed March 2022


Lucas KN4MEJ asked if I would have a look at a 1:2.5 balun and this is what I have come up with.

The balun is to feed a balanced antenna from an un-balanced line with a impedance step up from 50ohms to 125ohms, a 1:2.5 Voltage balun design using a FT140-43 ferrite toroid cores. It would be advised to have a 1:1 choking balun inline on the 50Ohm side to mitigate the possibility of common mode currents similar to  https://vk6ysf.com/balun_choke_balun_hf_reisert.htm





Construction



The 1:2.5 voltage balun has 4 and 6 turns wound evenly around the FT140-43 ferrite toroid core with the five individual windings wound close together.

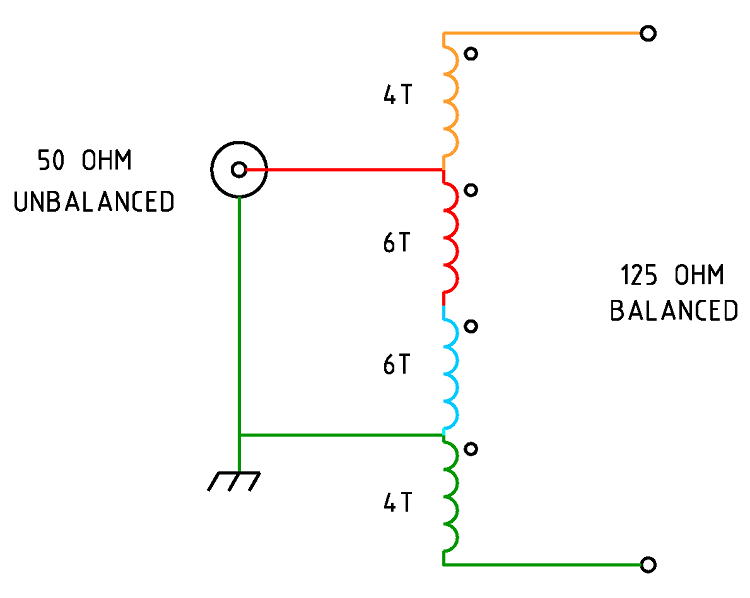

Figure 1 Schematic of the 1:2.5 Voltage balun

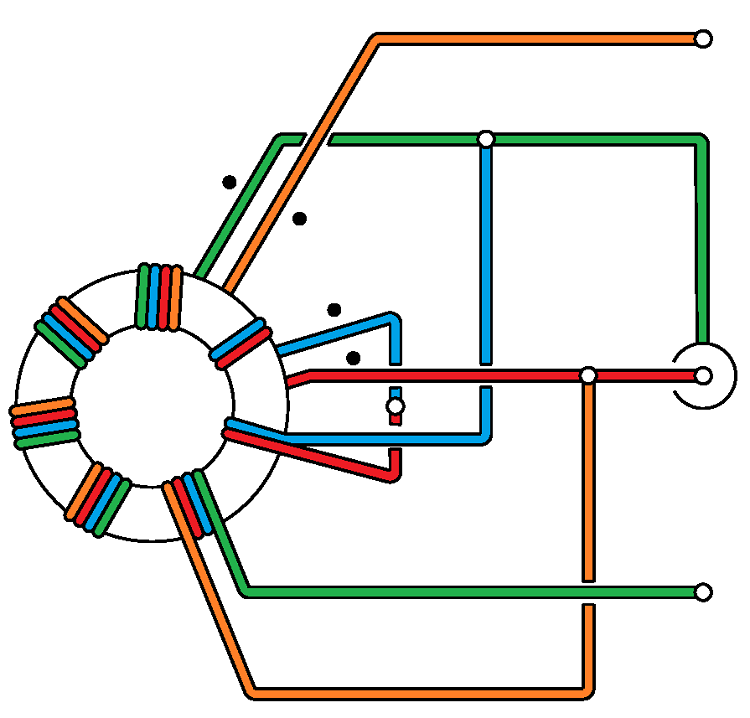

Figure 2  Wiring of the 1:2.5 Voltage balun.







Type

Voltage Balun

Ratio

1:2.5

Frequency Range

0.5 ~ 30MHz

Core Used

FT140-43 Ferrite Toroid Core

Number of turns

4 x 2 and 6 X 2

SWR

Low 1:1.2 (1.8MHz) High 1:2.5 (30.0MHz)

PEP Power Handling.

Approximately 100W

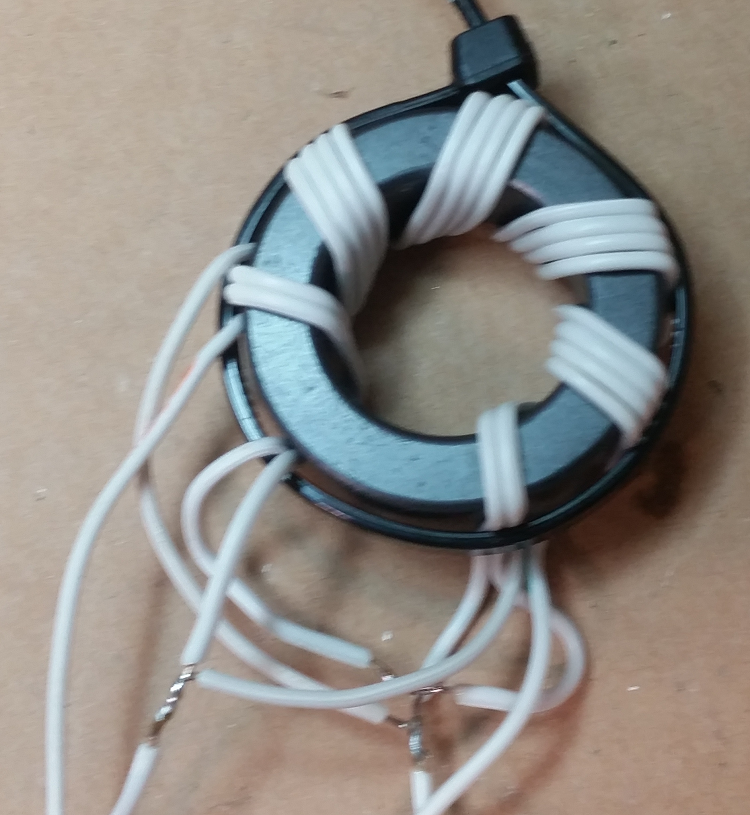

Photo 1 1:2.5 Voltage balun assembled



The evaluation of the efficiency of the balun over the desired bandwidth (0.5 - 30MHz) was carried out by testing the impedance that could be seen from unbalanced side to a resistive load applied to the balanced side using an AIM 4170C antenna analyser. The below antenna analyser plot views a 125ohm resistive load attached to the balanced side of the balun and measured at a nominal impedance of 50ohms presented as anticipated an approximate 50ohm load to the analyser and produced about a 1:1 SWR

The performance of the balun from 0.5MHz to about 30MHz is good and shows little reactance, however there is a gradual rise in reactance above 30MHz along with a gradual rise in the SWR.

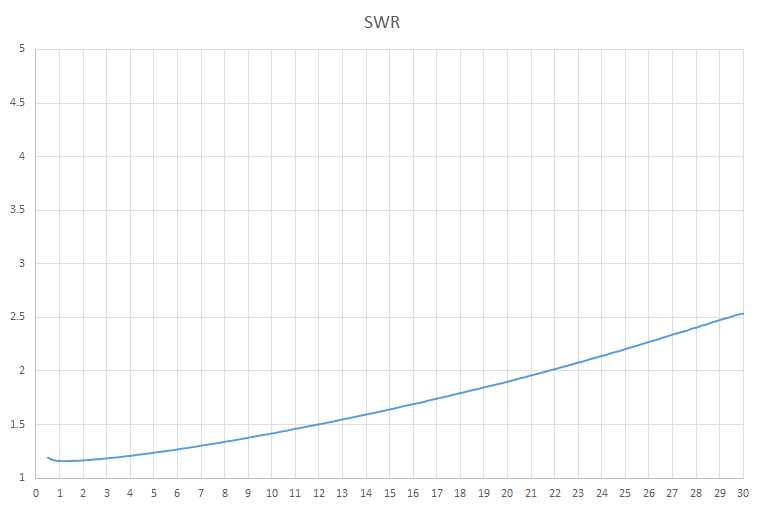

Figure 3  SWR data from the AIM 4170C antenna analyser plot viewing a 125ohm resistive load through the voltage balun. Note the 125ohm resistor appears as 50ohms due to the 2.5:1 balun ratio resulting in an ideal SWR of 1:1.

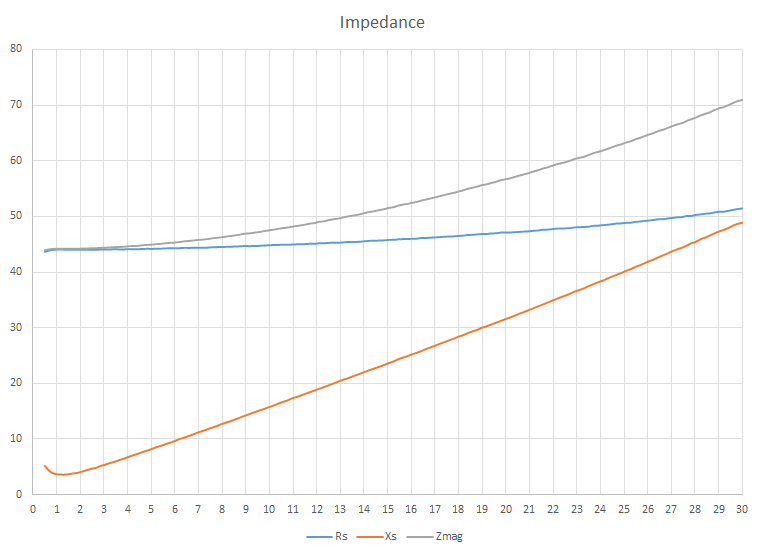

Figure 4  Impedance data from the AIM 4170C antenna analyser plot viewing a 125ohm resistive load through the voltage balun. Note the Rs = Resistance, Xs = Reactance, Zmag =  Impedance
