CHOKING BALUN FOR LOW BAND VHF

Choking balun for upper HF to lower VHF bands. (10MHz - 60MHz).


Requiring a choking balun to isolate the potential common mode RF on the coax cable for a new 6m band Ringo antenna.





Figure 1 Schematic of the 1:1 choking balun



Type  Choking Balun
Ratio 1:1
Frequency Range 14 ~ 54MHz
Choking Impedance 2k Ohms minimum. Ref: Figure 3
Core Used FT140-43 Ferrite Toroid Core
Number of turns 8 (4 + 4). Ref: Figure 2
SWR 1:1 Ref: Figure 4







Figure 2 Winding details of the 1:1 choking balun



Construction



The construction was simply to wind 8 turns of RG174 coax onto a FT140-43 Ferrite Toroid Core. The result of 8 turns achieved an average of 40uH lumped value inductive reactance to common mode RF currents from approximately 10MHz to 70MHz.

Parts list.

  • FT140-43 Ferrite Toroid Core
  • About 0.3mtr of RG174 coax.
  • 2 x N type chassis mount connector
  • Sealed Polycarbonate Enclosures 82 x 80 x 55mm

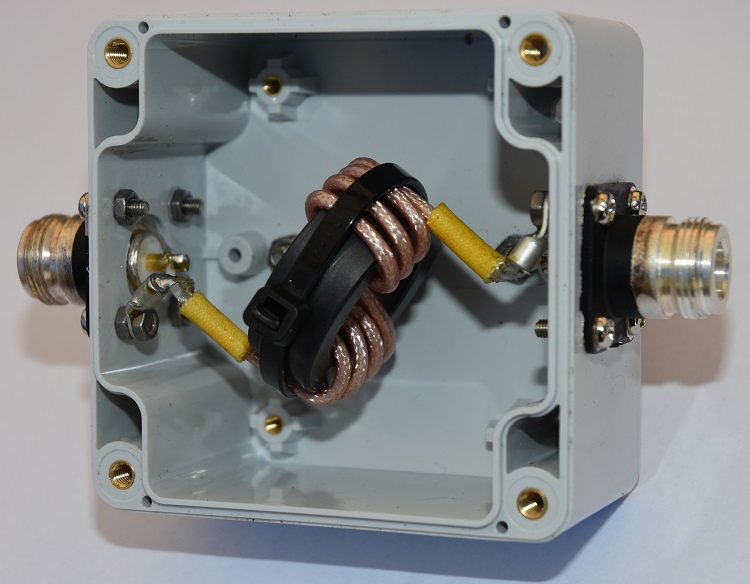

Photo 1 Low band choking balun assembled

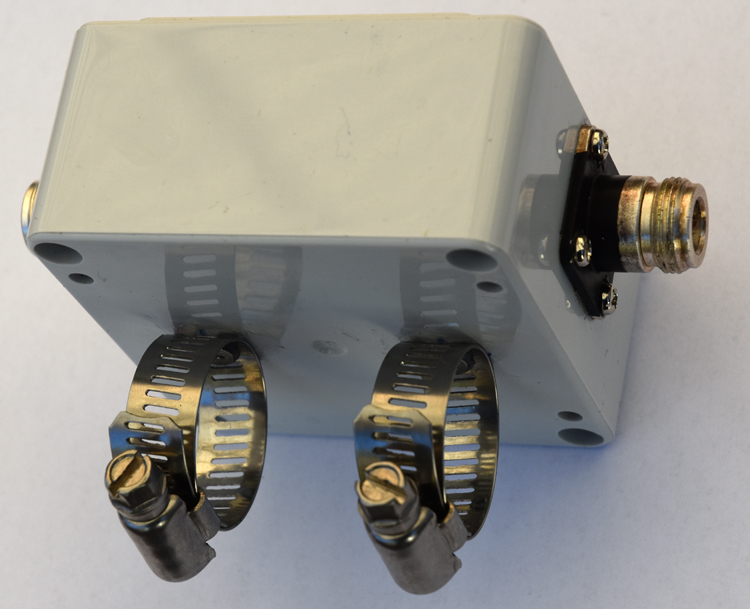

Photo 2 Rear view of the Low band choking balun assembled showing the hose clamp mast attachments





Testing



The AIM 4170C antenna analyser recorded in Figure 2 show the Impedance as measured in the coax shield presents an acceptable 2000 Ohms or greater from 14MHz to about 54MHz.





Figure 3 The evaluation of the choking impedance of the balun over a bandwidth from 10MHz- 60MHz.

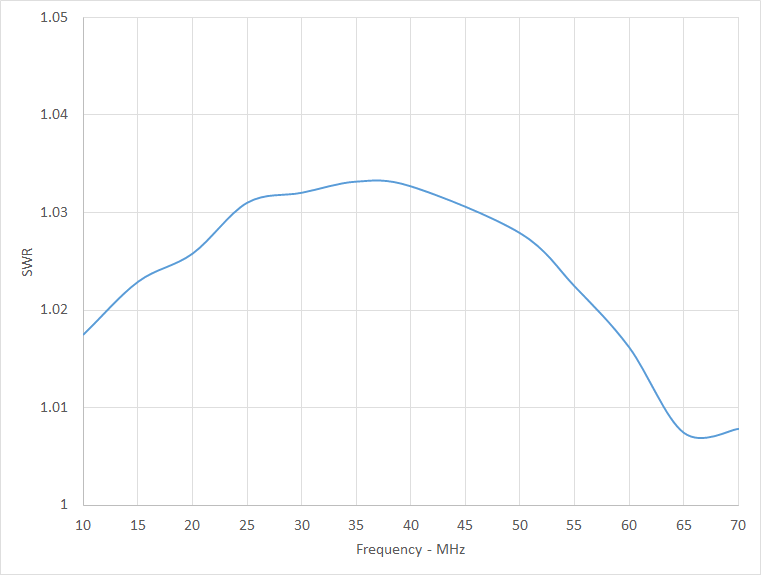

Figure 4 The evaluation of the balun with a 50 ohm load over a bandwidth from 10MHz- 70MHz. The balun shows a very low  SWR from the ideal 1:1 and despite the visual appearance in the graph this result is almost perfect and flat.
