Data from the WSPR web site relating to
monitoring and transmission from VK6YSF Northam Western Australia.
WSPR
Frequency: Dial 21.0946 MHz USB (occupied bandwidth 21.0960 -
21.0962 MHz)
Grid location: OF88II
Local Time = +8:00 hours (0:00 =
8:00AM)
Transmission Power 37 dBm (5Watts)
SSN (Sun Spot Number): 27
Equipment: TS-930 at
5W, Radio computer
interface
Antenna: Sloper
Antenna:
Sloper Antenna - 40 &
15m Bands
with T-Match
tuner
Doublet Antenna: Multi-band
dipole with T-Match
tuner and 4-1
Current Balun
L Antenna:
L Antenna with T-Match tuner
This exercise was to
compare the 40m Sloper Antenna with the Doublet Antenna and the L antenna
for operations on the 15m amateur band.
Conclusion is that
there is no compelling performance deference between the Antennas.
WSPR
data has been graphed using Excel. Horizontal axis = UTC Time,
Vertical axis = dB below the noise floor.
Antenna: Sloper
Antenna:
Sloper Antenna - 40 &
15m Bands
with T-Match
tuner
Doublet Antenna: Multi-band
dipole with T-Match
tuner and 4-1
Current Balun
L Antenna:
L Antenna with T-Match tuner
DF4UE
– Lichtenwald,
Germany- RECEIVED BY VK6YSF
Distance:
13801 km
Grid
location: JN48rr
dBm: 30
WSPR
data has been graphed using Excel. Horizontal axis = UTC Time,
Vertical axis = dB below the noise floor.
Antenna: Sloper
Antenna:
Sloper Antenna - 40 &
15m Bands
with T-Match
tuner
Doublet Antenna: Multi-band
dipole with T-Match
tuner and 4-1
Current Balun
L Antenna:
L Antenna with T-Match tuner
JA5NVN
– TOKUSHIMA,
Japan - RECEIVED BY VK6YSF
Distance:
7542 km
Grid
location: PM74ec
dBm: 33
WSPR
data has been graphed using Excel. Horizontal axis = UTC Time,
Vertical axis = dB below the noise floor.
Antenna:
Sloper
Antenna: Sloper
Antenna - 40 & 15m Bands with
T-Match
tuner
Doublet Antenna: Multi-band
dipole
with T-Match
tuner
and 4-1
Current Balun
L Antenna:
L
Antenna
with
T-Match
tuner

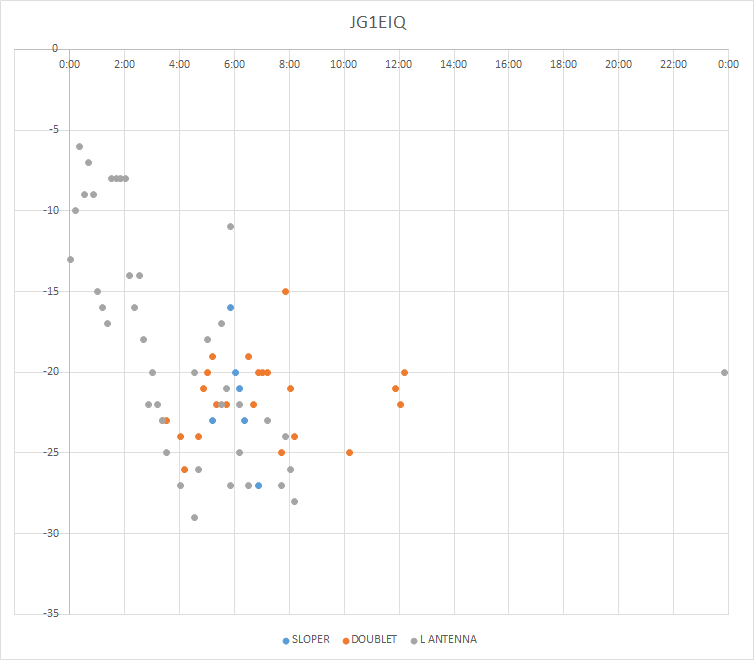

JG1EIQ
– JAPAN -
RECEIVED BY VK6YSF
Distance:
7632 km
Grid
location: PM74ns
dBm:
23
WSPR
data has been graphed using Excel. Horizontal axis = UTC Time,
Vertical axis = dB below the noise floor.
Antenna: Sloper
Antenna:
Sloper Antenna - 40 &
15m Bands
with T-Match
tuner
Doublet Antenna: Multi-band
dipole with T-Match
tuner and 4-1
Current Balun
L Antenna:
L Antenna with T-Match tuner
K0KQ
– Jefferson,
CO, USA - RECEIVED BY VK6YSF
Distance:
16118 km
Grid
location: DM79dg
dBm: 33
WSPR
data has been graphed using Excel. Horizontal axis = UTC Time,
Vertical axis = dB below the noise floor.
Antenna: Sloper
Antenna:
Sloper Antenna - 40 &
15m Bands
with T-Match
tuner
Doublet Antenna: Multi-band
dipole with T-Match
tuner and 4-1
Current Balun
L Antenna:
L Antenna with T-Match tuner
ON7KO
– VRASENE
Belgium - RECEIVED BY VK6YSF
Distance:
14212 km
Grid
location: JO21ce
dBm: 37
WSPR
data has been graphed using Excel. Horizontal axis = UTC Time,
Vertical axis = dB below the noise floor.
Antenna: Sloper
Antenna:
Sloper Antenna - 40 &
15m Bands
with T-Match
tuner
Doublet Antenna: Multi-band
dipole with T-Match
tuner and 4-1
Current Balun
L Antenna:
L Antenna with T-Match tuner
TA4/G8SCU
– Alanya
Turkey - RECEIVED BY VK6YSF
Distance:
11694 km
Grid
location: KM56ov
dBm: 37
WSPR
data has been graphed using Excel. Horizontal axis = UTC Time,
Vertical axis = dB below the noise floor.
Antenna: Sloper
Antenna:
Sloper Antenna - 40 &
15m Bands
with T-Match
tuner
Doublet Antenna: Multi-band
dipole with T-Match
tuner and 4-1
Current Balun
L Antenna:
L Antenna with T-Match tuner
VK2GZZ
– Sydney,
NSW, Australia - RECEIVED BY VK6YSF
Distance:
3201 km
Grid
location: QF56
dBm: 23
WSPR
data has been graphed using Excel. Horizontal axis = UTC Time,
Vertical axis = dB below the noise floor.
Antenna: Sloper
Antenna:
Sloper Antenna - 40 &
15m Bands
with T-Match
tuner
Doublet Antenna: Multi-band
dipole with T-Match
tuner and 4-1
Current Balun
L Antenna:
L Antenna with T-Match tuner
VK6PK
– WOOROLOO,
WA, Australia- RECEIVED BY VK6YSF
Distance:
37 km
Grid
location: OF88ee
dBm: 37
WSPR
data has been graphed using Excel. Horizontal axis = UTC Time,
Vertical axis = dB below the noise floor.
Antenna: Sloper
Antenna:
Sloper Antenna - 40 &
15m Bands
with T-Match
tuner
Doublet Antenna: Multi-band
dipole with T-Match
tuner and 4-1
Current Balun
L Antenna:
L Antenna with T-Match tuner
YB0Z
– Jakarta,
Indonesia - RECEIVED BY VK6YSF
Distance:
3013 km
Grid
location: OI33jt
dBm: 33
WSPR
data has been graphed using Excel. Horizontal axis = UTC Time,
Vertical axis = dB below the noise floor.
Antenna: Sloper
Antenna:
Sloper Antenna - 40 &
15m Bands
with T-Match
tuner
Doublet Antenna: Multi-band
dipole with T-Match
tuner and 4-1
Current Balun
L Antenna:
L Antenna with T-Match tuner
VK6YSF WSPR Signal received by: DK6UG
Weisenheim,
Germany
Distance:
13906km
Grid
location:
DK6UG
dBm: 37
WSPR
data has been graphed using Excel. Horizontal axis = UTC Time,
Vertical axis = dB below the noise floor.
Antenna: Sloper
Antenna:
Sloper Antenna - 40 &
15m Bands
with T-Match
tuner
Doublet Antenna: Multi-band
dipole with T-Match
tuner and 4-1
Current Balun
L Antenna:
L Antenna with T-Match tuner
VK6YSF WSPR Signal received by: EA8BFK
Islas
Canarias, Canary Islands, Spain
Distance:
15291 km
Grid
location:
IL38bo
dBm: 37
WSPR
data has been graphed using Excel. Horizontal axis = UTC Time,
Vertical axis = dB below the noise floor.
Antenna: Sloper
Antenna:
Sloper Antenna - 40 &
15m Bands
with T-Match
tuner
Doublet Antenna: Multi-band
dipole with T-Match
tuner and 4-1
Current Balun
L Antenna:
L Antenna with T-Match tuner
VK6YSF WSPR Signal received by: JA5NVN
TOKUSHIMA,
Japan
Distance:
7542 km
Grid
location:
PM74ec
dBm: 37
WSPR
data has been graphed using Excel. Horizontal axis = UTC Time,
Vertical axis = dB below the noise floor.
Antenna: Sloper
Antenna:
Sloper Antenna - 40 &
15m Bands
with T-Match
tuner
Doublet Antenna: Multi-band
dipole with T-Match
tuner and 4-1
Current Balun
L Antenna:
L Antenna with T-Match tuner

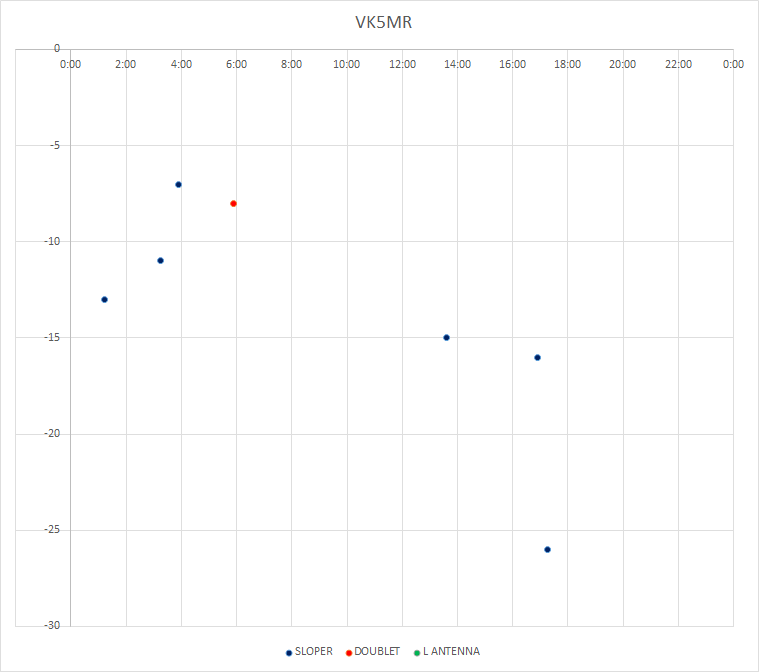

VK6YSF WSPR Signal received by: VK5MR
Roxby
Downs, SA, Australia
Distance:
1921 km
Grid
location:
PF89kk
dBm: 37
WSPR
data has been graphed using Excel. Horizontal axis = UTC Time,
Vertical axis = dB below the noise floor.
Antenna: Sloper
Antenna:
Sloper Antenna - 40 &
15m Bands
with T-Match
tuner
Doublet Antenna: Multi-band
dipole with T-Match
tuner and 4-1
Current Balun
L Antenna:
L Antenna with T-Match tuner
VK6YSF WSPR Signal received by: VK6PK
WOOROLOO,
WA, Australia
Distance:
37km
Grid
location:
OF88ee
dBm: 37
WSPR
data has been graphed using Excel. Horizontal axis = UTC Time,
Vertical axis = dB below the noise floor.
Antenna: Sloper
Antenna:
Sloper Antenna - 40 &
15m Bands
with T-Match
tuner
Doublet Antenna: Multi-band
dipole with T-Match
tuner and 4-1
Current Balun
L Antenna:
L Antenna with T-Match tuner
VK6YSF WSPR Signal received by: VU3KAZ
Bangalore,
India
Distance:
6467km
Grid
location:
MK82tu
dBm: 37
|
