10MHz LOCAL OSCILLATOR

10MHz local oscillator. Under development


The 10MHz local oscillator design is a combination of G3XBM designed local oscillator used for a similar 137kHz transverter and an ARRL Hand Book's local oscillator design for a 160m band transverter. The success of the this 10MHz oscillator will also be the used for a future 137kHz transverter.

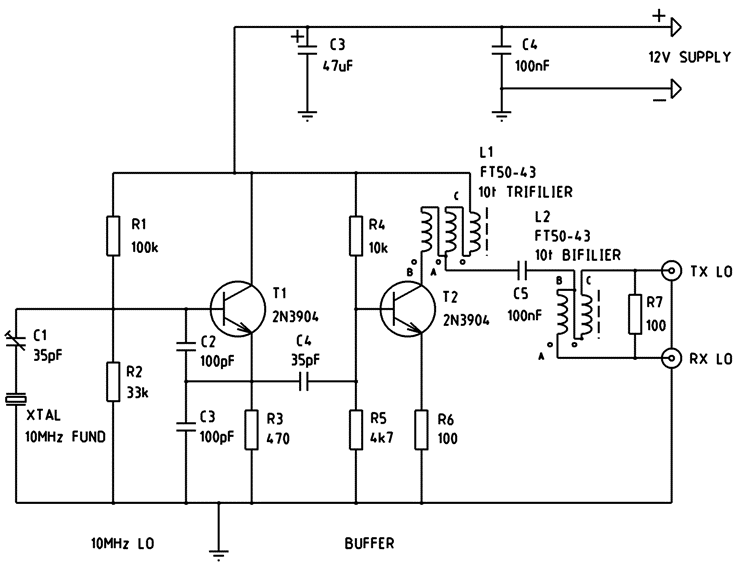

 Fig 1 Schematic of the 10MHz crystal lock oscillator and buffer stage. This circuit is subject to further development.

Component details

XTAL XTAL 10MHz Fundamental HC49U
Q1 Transistor - 2N3904 TO-92
Q2 Transistor - 2N3904 TO-92
R1 Resistor 100k 0.25W Carbon
R2 Resistor 33k  0.25W Carbon
R3 Resistor 470  0.25W Carbon
R4 Resistor 10k 0.25W Carbon
R5 Resistor 4k7 0.25W Carbon
R6 Resistor 100 0.25W Carbon
R7 Resistor 100 0.25W Carbon
C1 Capacitor - trimmer 5 - 60pf (35pf)
C2 Capacitor - Ceramic - 100pf
C3 Capacitor - Ceramic - 100pf
C4 Capacitor - Ceramic - 33pf
C5 Capacitor - Ceramic - 100nf
C6 Capacitor - Electrolytic - 47uf 50v
C7 Capacitor - Ceramic - 100nf
L1 FT50-43 Toroidal core Amidon PN# FT-50-43
L2 FT50-43 Toroidal core Amidon PN# FT-50-43

The two RF transformers are wound per Fig 2 & 3 winding details of 10turns of Bifiliar and Trifiliar windings on a  FT50-43 Toroidal cores.

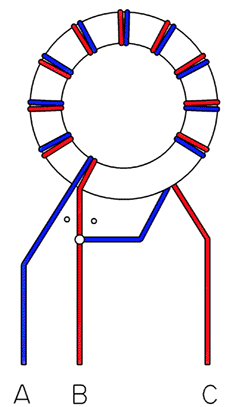

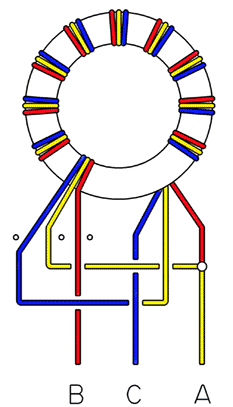

Fig 2 L1 winding details for the matching transformer Fig 3 L2 winding details for the splitter transformer

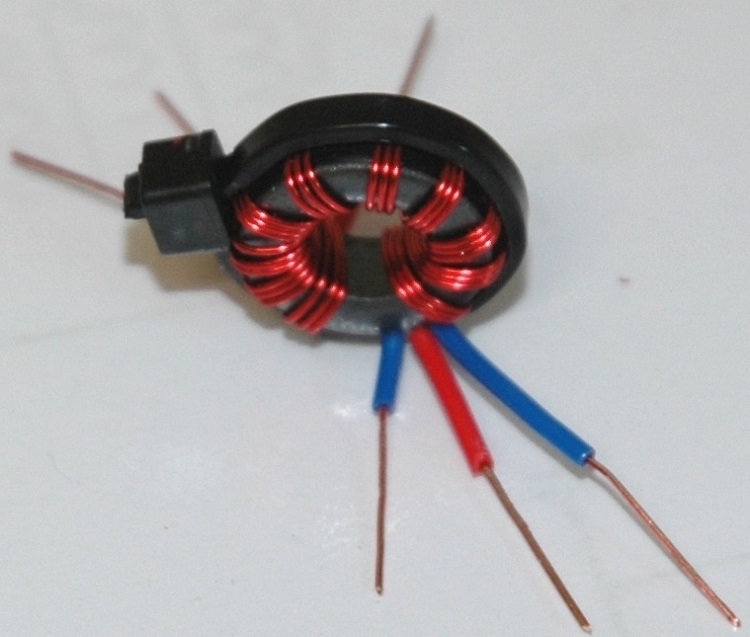

Photo 1 Assembled L1 matching transformer

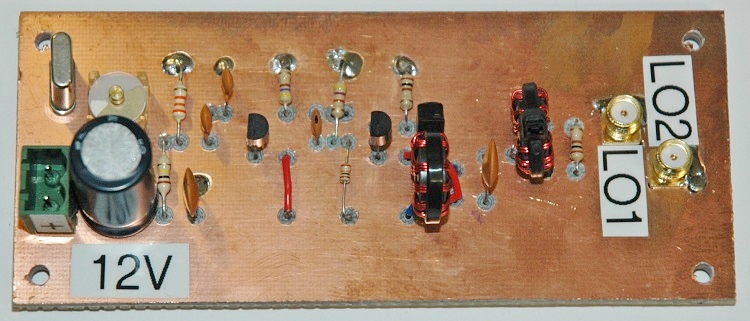

Photo 2 Assembled local isolator and buffer circuit.
