VK6RAV - AVON VALLEY REPEATER - 147.275MHz

Operational details of local repeater VK6RAV.

HOME  > OPERATIONAL > LOCAL REPEATERS>



Call : VK6RAV
Frequency (MHz) : 147.275
Service Area : Avon Valley, Western Australia
Site :  Hoddys Well
Linking : AllStar node: 45472
Sponsor :  West Australian Repeater Group (WARG)
Email :
Web site :  http://www.warg.org.au
Note :

APRS: 145.175 MHz

APRS Info: https://aprs.fi/info/a/VK6RAV-3

KiwiSDR (Remote HF receiver): http://vk6seg.proxy.kiwisdr.com:8073/



Technical

Output Frequency (MHz) : 147.275
Input Frequency (MHz) : 147.875
Power (Watts) : 20W
Time Out : 3 min
CTCSS Access (Hz) : Open
Latitude : -31.63559928
Longitude : 116.49225623
Location:
HASL (m) : 430

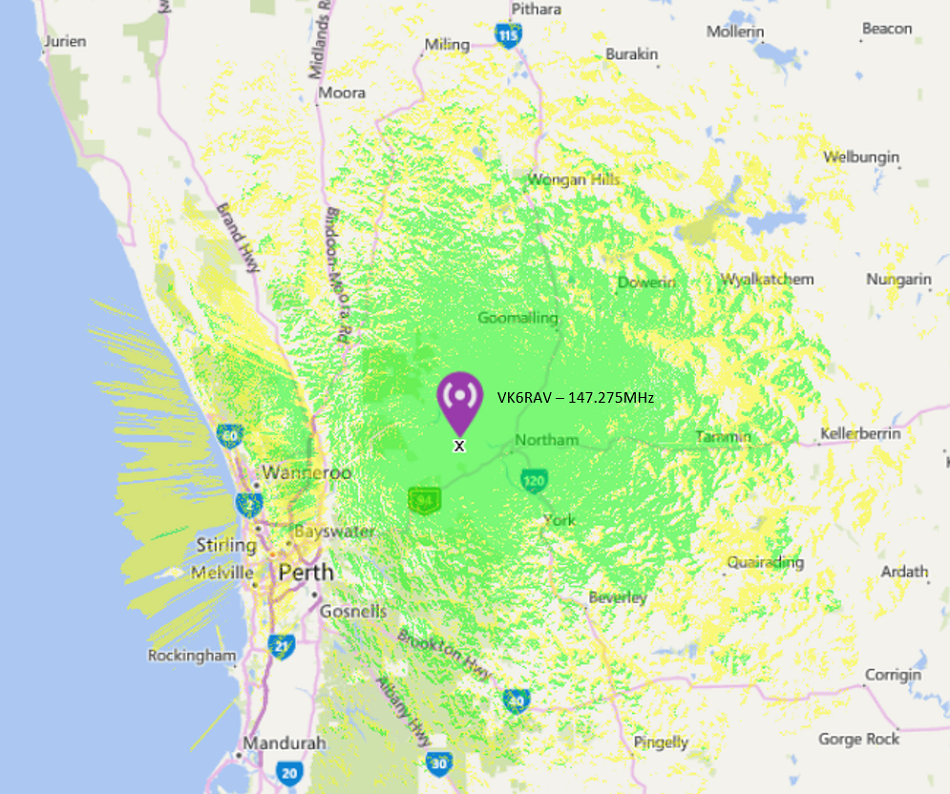

The above radiation foot-print was produced using Radio Mobile

See comparative information of former site at Crowns Nest Hill



Site and equipment information.

Photo 1  Equipment rack as at 14 November 2024

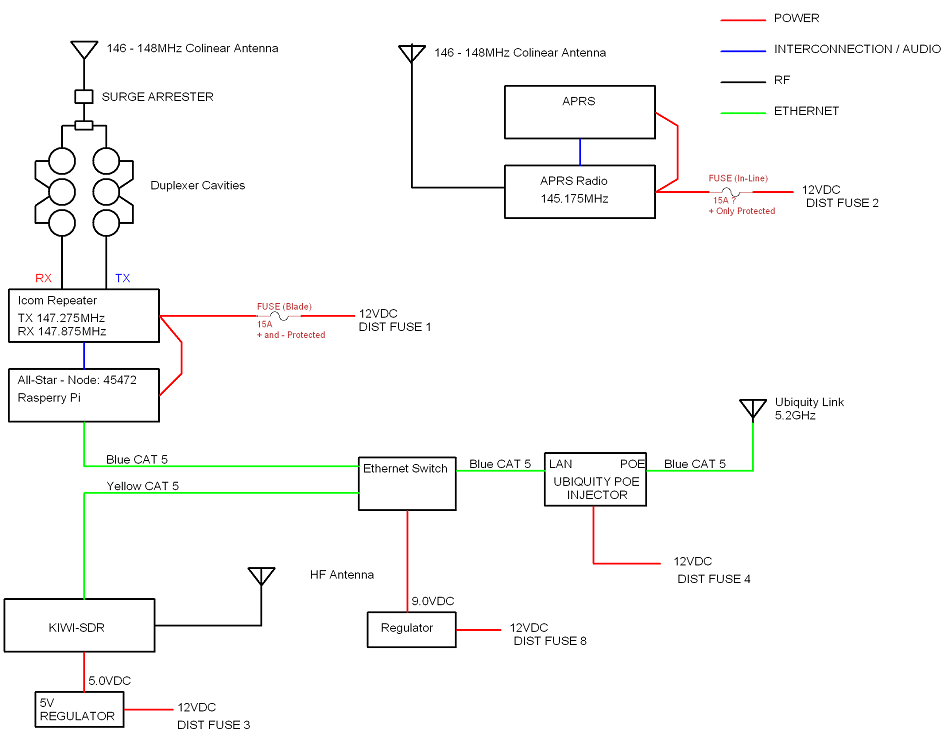

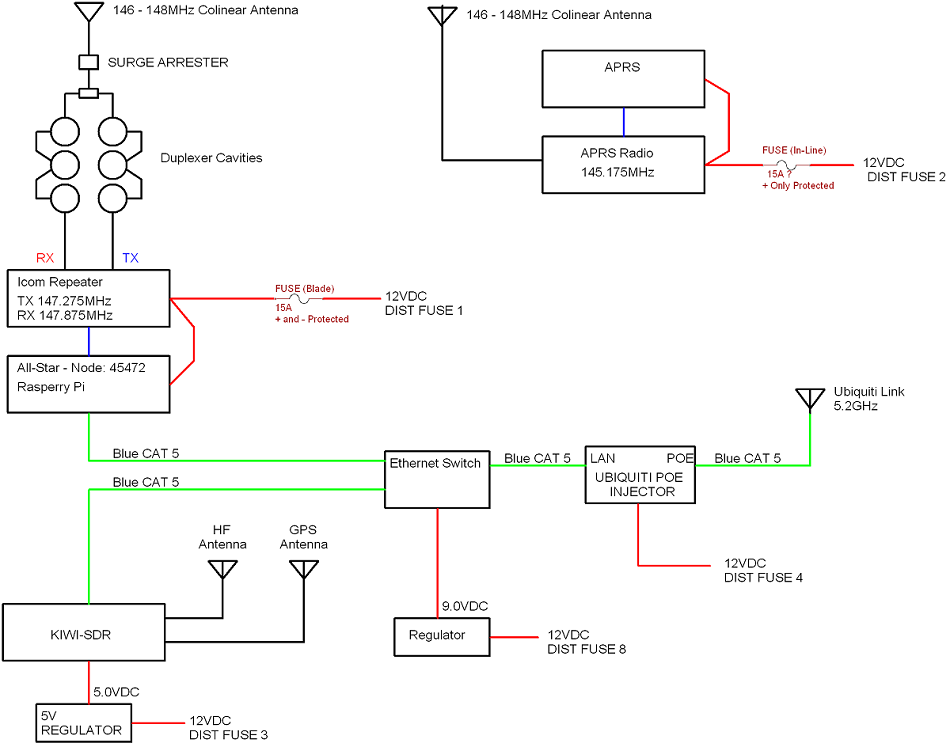

Fig 1  Single line diagram of equipment arrangement as at 14 November 2024.



Broadband Link

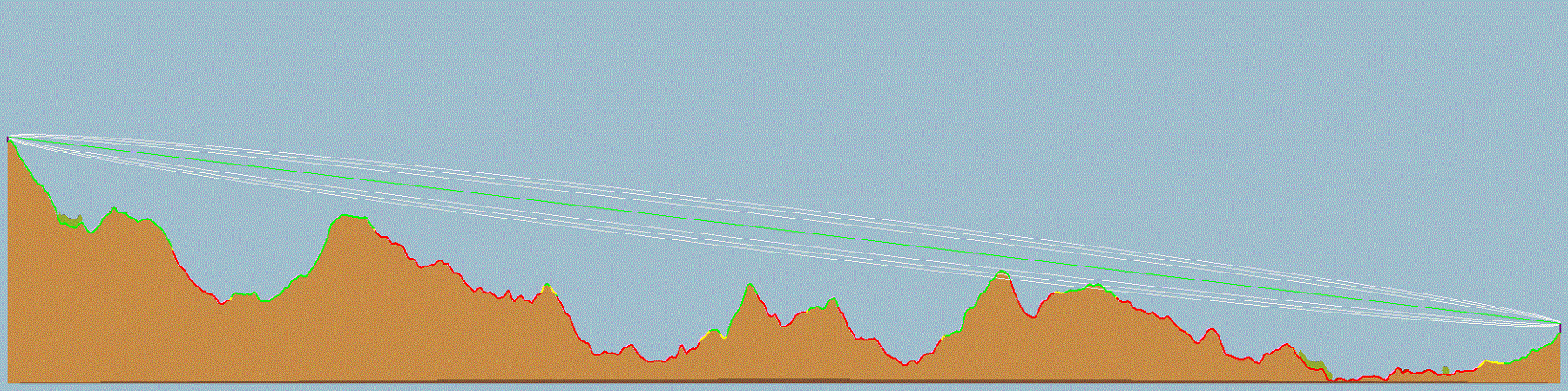

Fig 2 The above Link Study for the 5.2GHz broadband link between the VK6RAV repeater site and Northam was produced using Radio Mobile



Link Study Performance

Distance: 18.6 km
Precision:  10.0 m
Frequency: 5200.0 MHz
Equivalent Isotropic Radiated Power: 87.916 W
System gain: 186.46 dB
Required reliability: 90.000 %
Received Signal: -75.46 dBm
Received Signal:  37.76 μV

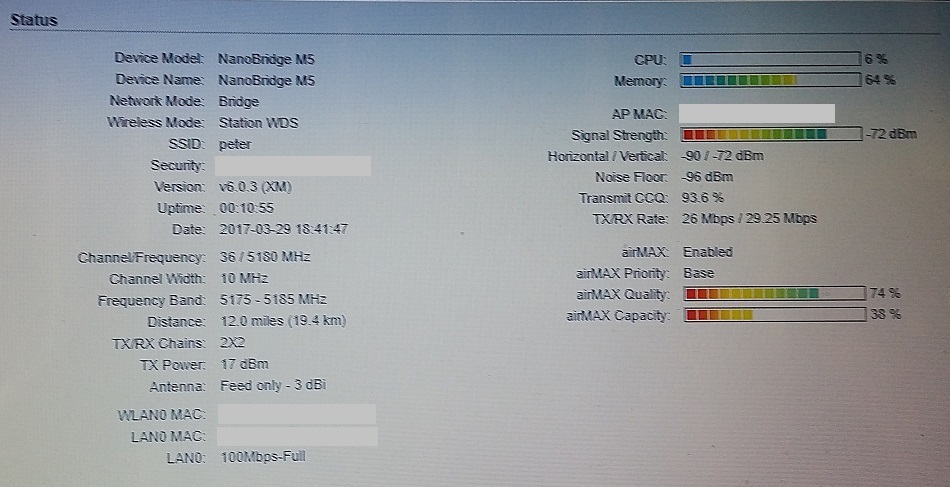

Installed Ubiquiti link status measurement.

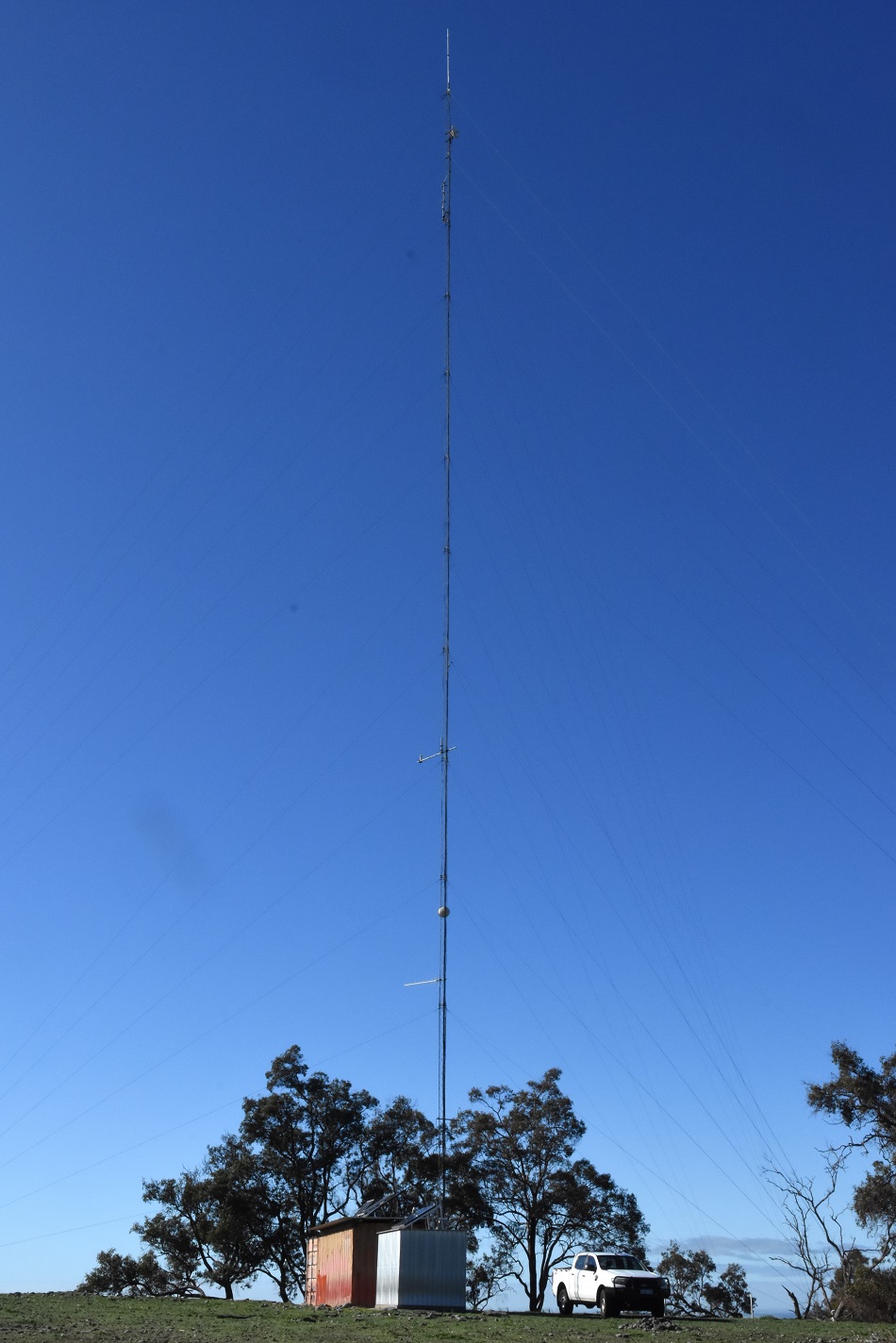

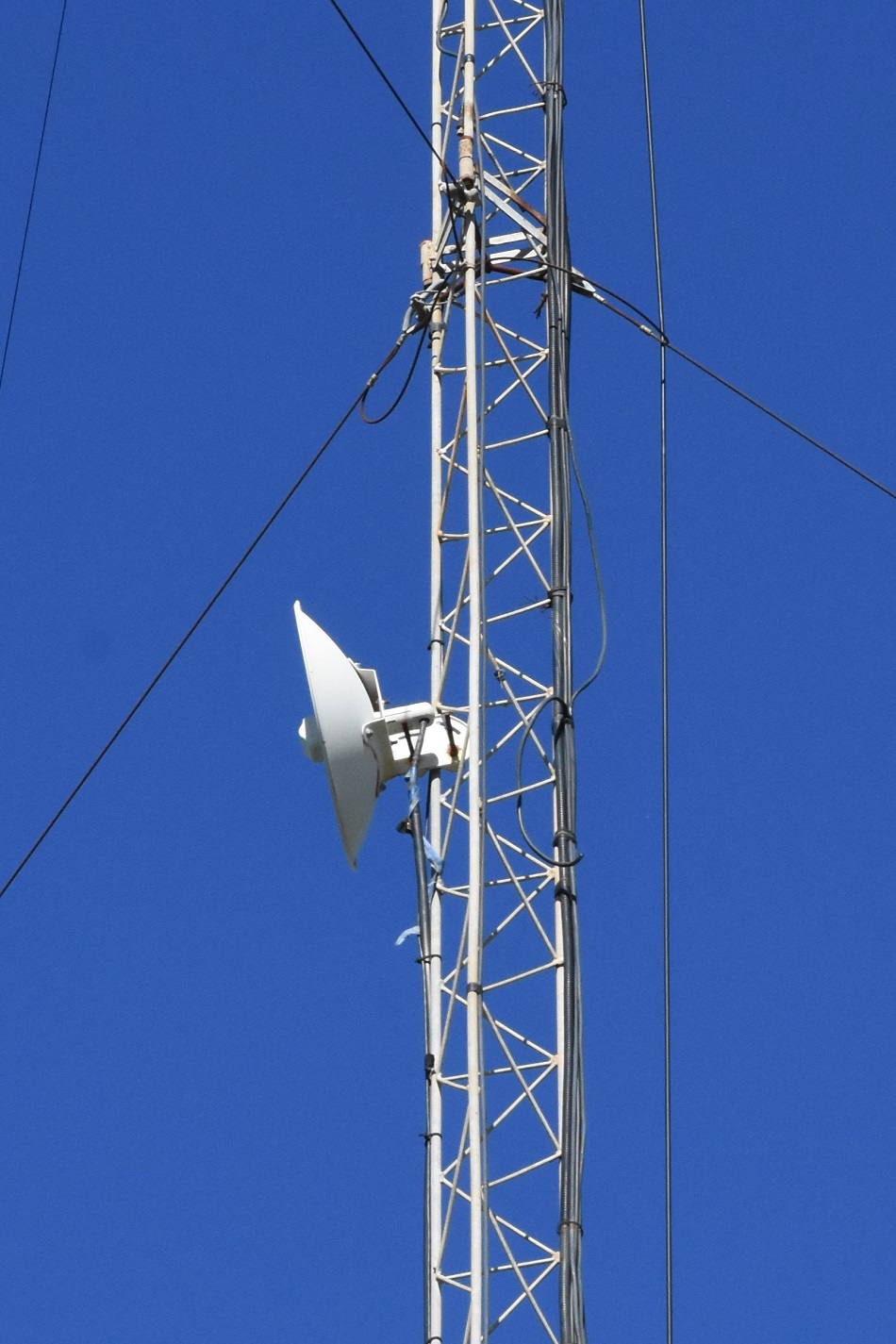

54m site tower (Worlds tallest / skinniest tower).                  21 July 2026. 5.2GHz broadband Ubiquiti link antenna. 21 July 2026
Town of Northam 15km to the east of the VK6RAV site. 21 July 2026



Tower guy wires

Fig 3  Tower guy wire details



Guy wire group

Distance from tower base to ground attachment (Mtr)

Tower attachment above ground (Mtr)

Guy wire length (Mtr Rounded up to 3 decimal place)

Guy wire length plus 5m termination tails (Mtr Rounded up to 1 decimal place)

1

20.22

4.790

20.780

25.8

2

20.22

9.280

22.248

27.3

3

20.46

13.770

24.663

29.7

4

20.46

18.260

27.424

32.5

5

20.72

22.750

30.772

35.8

6

20.72

27.240

34.225

39.3

7

30.16

31.730

43.777

48.8

8

30.16

36.220

47.133

52.2

9

30.4

40.710

50.809

55.9

10

30.4

45.200

54.473

59.5

11

30.66

49.690

58.388

63.4

12

30.66

54.180

62.254

67.3

Table 1  Tower guy wire details

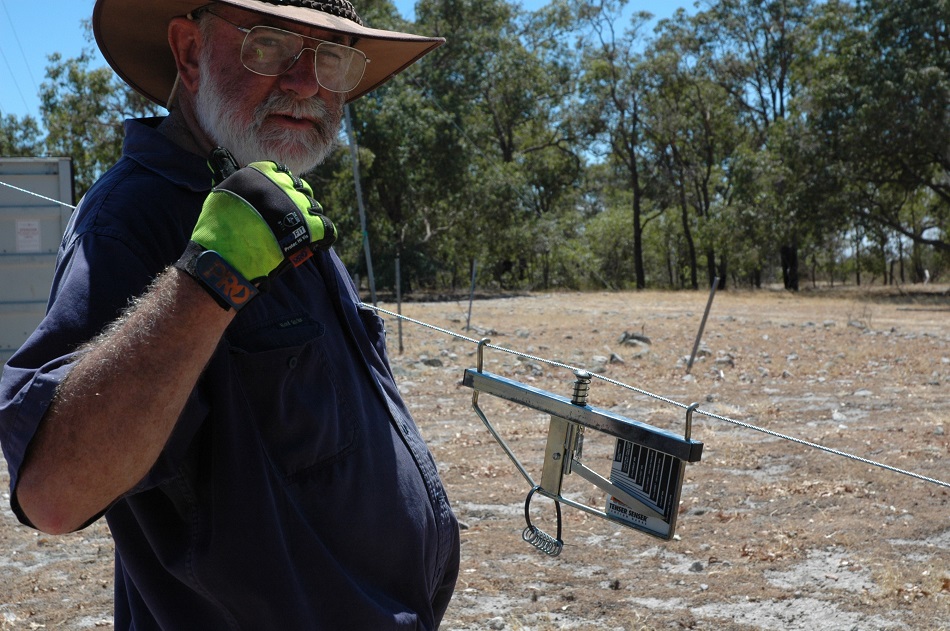

Jim (VK6CA) Setting the tower guy wire tension. 24 May 2014



Site and equipment photos: VK6RAV PHOTOS



Some works that have been completed at the VK6RAV site.

2014 Project to replace deteriorated tower guy wire and install new 2m band co-linier antenna:  vk6rav_maintenance_2014.htm

May 2024 project to upgrade the DC distribution board: dc_distribution_vk6rav20240514.html

March 2025 project included a DC line filter to attenuate regulator noise: VK6RAV DC Line Filter





Video of the VK6RAV general site and tower.
