WSPR - 80m BAND - 24/09/2017~29/09/2017
WSPR 80m (3.5 - 3.7 MHz) band activity data recorded for a 48 hour period on the 24/09/2017~29/09/2017
Data from the WSPR web site relating to monitoring and transmission from VK6YSF Northam Western Australia.

WSPR Frequency: Dial 3.5926 MHz USB (occupied bandwidth 3.5940 - 3.5942 MHz)

Grid location: OF88II

Local Time = +8:00 hours (0:00 = 8:00AM)

Transmission Power 37 dBm (5Watts)

SSN (Sun Spot Number):

Equipment: TS-930 at 5W, Radio computer interface

Antenna#1: Multi-band dipole with T-Match tuner and 4-1 Current Balun

Antenna#2: 'T" Antenna configuration with T-Match tuner

Antenna#3: 'L" Antenna configuration with T-Match tuner



This exercise was to compare the Multi-band dipole antenna with the same antenna configured as a  'T" Antenna and configured as an  'L" Antenna for operations on the 80m amateur band.

The main HF antenna is an All Band Doublet feed with ladder line and matched with a T-Match antenna tuner including a 1:4 current balun giving access to all HF band including the 160m band. With a view to get better performance particularly on lower frequency bands this antenna was reconfigured as a type of Marconi T Antenna by simple bonding the ladder line in the shack and connecting directly to the T-Match antenna tuner and an L Antenna by simple connecting to one side of the ladder line in the shack and connecting directly to the T-Match antenna tuner.



WSPR 80m band activity data recorded for a 5 x 24 hour period between 24/09/2017~29/09/2017 showing SNR against UTC time, Vertical axis = dB below the noise floor.

Antenna#1: Multi-band dipole with T-Match tuner and 4-1 Current Balun

Antenna#2: 'T" Antenna configuration with T-Match tuner

Antenna#3: 'L" Antenna configuration with T-Match tuner



VK6YSF WSPR Signal received by DL/PA0EHG Netherlands

Distance: 14002km

Grid location: JO32sq

dBm: 37

Antenna#1: Multi-band dipole with T-Match tuner and 4-1 Current Balun

Antenna#2: 'T" Antenna configuration with T-Match tuner

Antenna#3: 'L" Antenna configuration with T-Match tuner



VK6YSF WSPR Signal received by KD6RF GILMER, TX USA

Distance: 17033km

Grid location: EM22

dBm: 37

Antenna#1: Multi-band dipole with T-Match tuner and 4-1 Current Balun

Antenna#2: 'T" Antenna configuration with T-Match tuner

Antenna#3: 'L" Antenna configuration with T-Match tuner



VK6YSF WSPR Signal received by OH2EAT Helsinki Finland

Distance: 13082km

Grid location: KP20xw

dBm: 37

Antenna#1: Multi-band dipole with T-Match tuner and 4-1 Current Balun

Antenna#2: 'T" Antenna configuration with T-Match tuner

Antenna#3: 'L" Antenna configuration with T-Match tuner

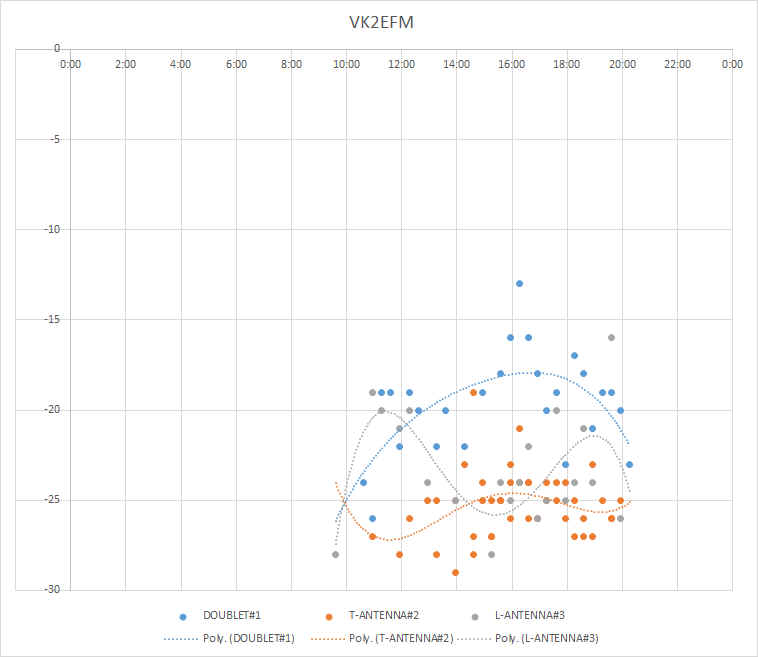

VK2EFM Kariong, NSW Australia

Distance: 3233km

Grid location: QF56pn

dBm: 23

Antenna#1: Multi-band dipole with T-Match tuner and 4-1 Current Balun

Antenna#2: 'T" Antenna configuration with T-Match tuner

Antenna#3: 'L" Antenna configuration with T-Match tuner



VK5UV Mintaro, South Australia, Australia

Distance: 2068km

Grid location: PF96ib

dBm: 27

Antenna#1: Multi-band dipole with T-Match tuner and 4-1 Current Balun

Antenna#2: 'T" Antenna configuration with T-Match tuner

Antenna#3: 'L" Antenna configuration with T-Match tuner

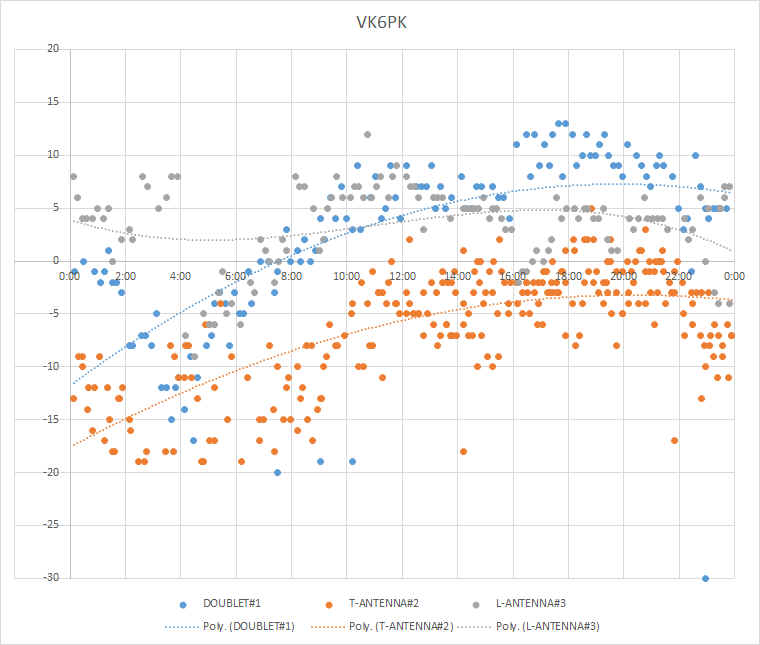

VK6PK WOOROLOO, WA Australia

Distance: 37km

Grid location: OF88ee

dBm: 37

Antenna#1: Multi-band dipole with T-Match tuner and 4-1 Current Balun

Antenna#2: 'T" Antenna configuration with T-Match tuner

Antenna#3: 'L" Antenna configuration with T-Match tuner



VK6YSF WSPR Signal received by VK6PK WOOROLOO, WA Australia

Distance: 37km

Grid location: OF88ee

dBm: 37

Antenna#1: Multi-band dipole with T-Match tuner and 4-1 Current Balun

Antenna#2: 'T" Antenna configuration with T-Match tuner

Antenna#3: 'L" Antenna configuration with T-Match tuner



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

VK6YSF WSPR Signal received by:VK2KRR The Rock, NSW Australia

Distance: 2832km

Grid location: QF34mr

dBm: 37

Antenna#1: Multi-band dipole with T-Match tuner and 4-1 Current Balun

Antenna#2: 'T" Antenna configuration with T-Match tuner

Antenna#3: 'L" Antenna configuration with T-Match tuner
