WSPR - 80m BAND - 22/03/2017
WSPR 80m (3.5 - 3.7 MHz) band activity data recorded for a 24 hour period on the 22/03/2017
Data from the WSPR web site relating to monitoring and transmission from VK6YSF Northam Western Australia.

WSPR Frequency: Dial 3.5926 MHz USB (occupied bandwidth 3.5940 - 3.5942 MHz)

Grid location: OF88II

Local Time = +8:00 hours (0:00 = 8:00AM)

Transmission Power 37 dBm (5Watts)

SSN (Sun Spot Number): 29

Equipment: TS-930 at 5W, Radio computer interface

Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

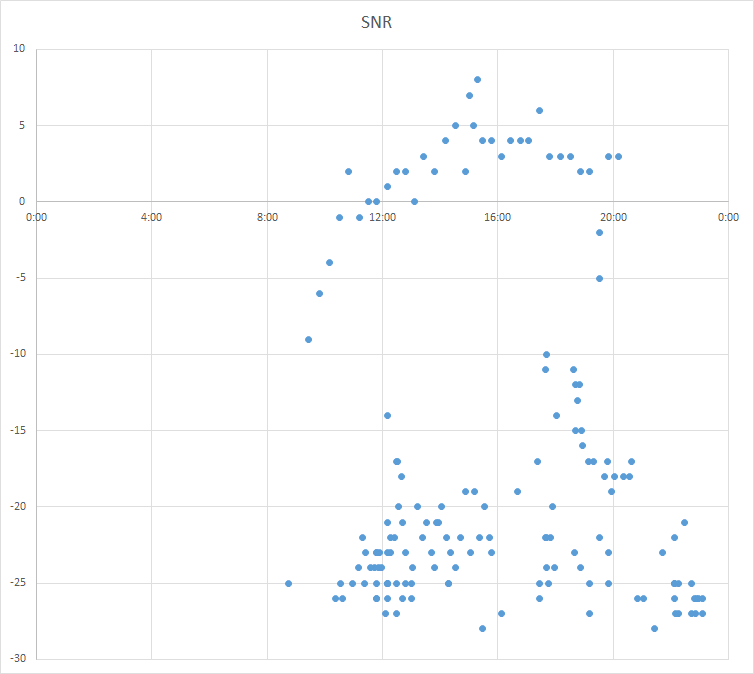

WSPR 80m band activity data recorded for a 24 hour period on the 22/03/2017 showing SNR against UTC time, Vertical axis = dB below the noise floor.

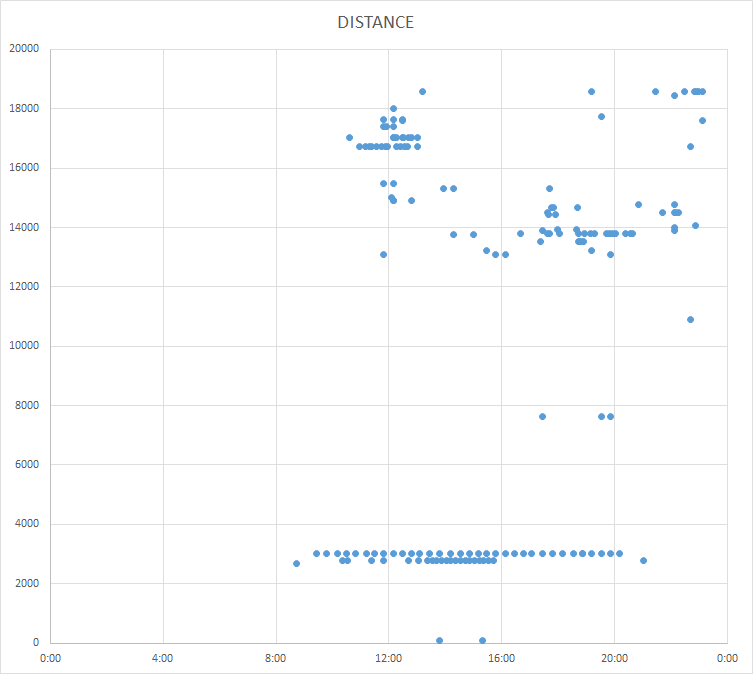

WSPR 80m band activity data recorded for a 24 hour period on the 22/03/2017 showing distance in km against UTC time.

Vertical axis = km

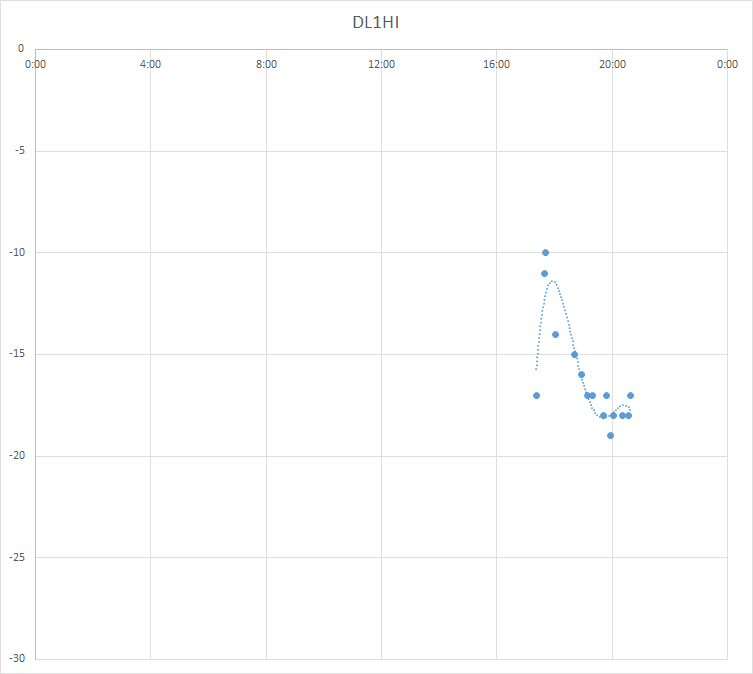

WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

DL1HI - Wahrenholz Germany

Distance: 13795km

Grid location: JO52ho

dBm: 47

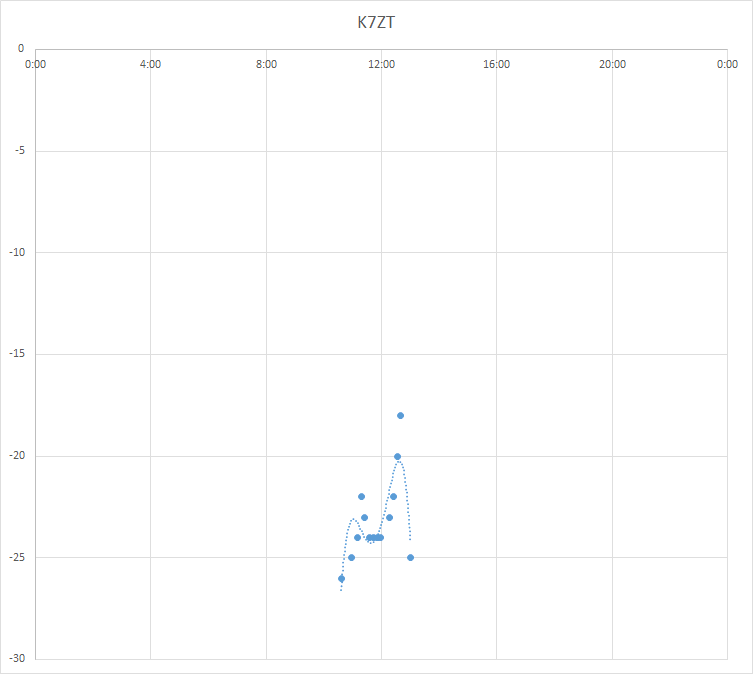

WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

K7ZT - PFLUGERVILLE, TX USA

Distance: 16734km

Grid location: EM10bn

dBm: 37

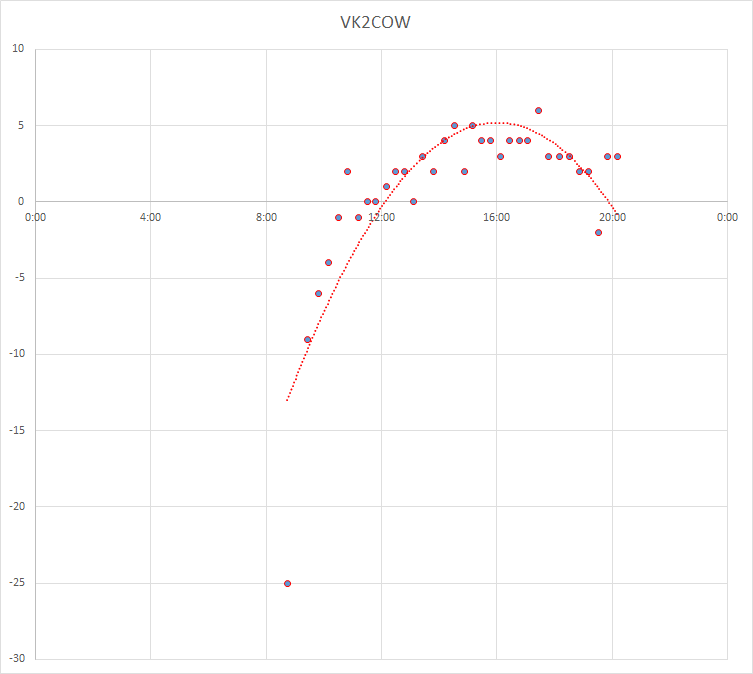

WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

VK6YSF WSPR Signal received by: VK3COW - Victoria Australia

Distance: 3029km

Grid location: QF44ox

dBm: 37

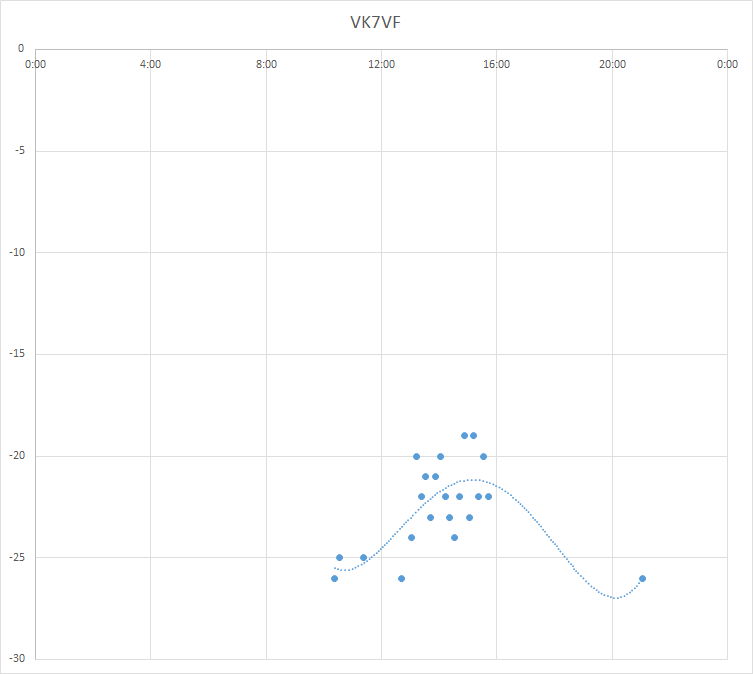

WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

VK7VF - Tasmania Australia

Distance: 2779km

Grid location: QE28tu

dBm: 23
