WSPR - 40m BAND - 17/07/2017
WSPR 40m (7.0 - 7.3 MHz) band activity data recorded for 3 x 24 hour periods on 14 and 15/07/2017 and 17/07/2017
Data from the WSPR web site relating to monitoring and transmission from VK6YSF Northam Western Australia.

WSPR Frequency: Dial 7.0386 MHz USB (occupied bandwidth 7.0400 - 7.0402 MHz)

Grid location: OF88II

Local Time = +8:00 hours (0:00 = 8:00AM)

Receive and transmit

SSN (Sun Spot Number): ?

Equipment: TS-930 at 5W, Radio computer interface

Antenna:  Antenna#1 Sloper Antenna  -  40 & 15m Bands with T-Match tuner

               Antenna#2 Multi-band dipole with T-Match tuner and 4-1 Current Balun



This exercise was to compare the 40/15m band sloper antenna with the main station antenna used for operations on the 40m amateur band.



WSPR 40m band activity data recorded for 3 x 24 hour period on the 14, 15 and 17/03/2017 showing SNR against UTC time, Vertical axis = dB below the noise floor.

Antenna#1 Sloper Antenna  -  40 & 15m Bands with T-Match tuner

Antenna#2 Multi-band dipole with T-Match tuner and 4-1 Current Balun



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna#1 Sloper Antenna  -  40 & 15m Bands with T-Match tuner

Antenna#2 Multi-band dipole with T-Match tuner and 4-1 Current Balun

AH6GT  Holualoa, Hawaii USA

Distance: 10897km

Grid location: BK29ap

dBm: 43



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna#1 Sloper Antenna  -  40 & 15m Bands with T-Match tuner

Antenna#2 Multi-band dipole with T-Match tuner and 4-1 Current Balun

BH4BTZ Shanghai China

Distance: 7033km

Grid location: PM01

dBm: 33



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna#1 Sloper Antenna  -  40 & 15m Bands with T-Match tuner

Antenna#2 Multi-band dipole with T-Match tuner and 4-1 Current Balun

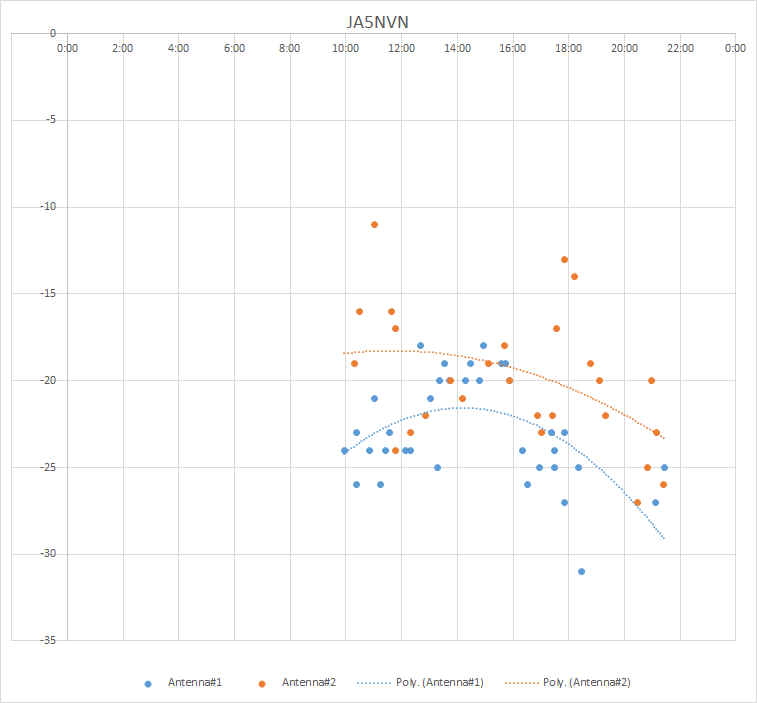

JA5NVN Japan

Distance: 7542km

Grid location: PM74ec

dBm: 33



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna#1 Sloper Antenna  -  40 & 15m Bands with T-Match tuner

Antenna#2 Multi-band dipole with T-Match tuner and 4-1 Current Balun

JG1EIQ Japan

Distance: 7632km

Grid location: PM74ns

dBm: 30



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna#1 Sloper Antenna  -  40 & 15m Bands with T-Match tuner

Antenna#2 Multi-band dipole with T-Match tuner and 4-1 Current Balun

KP4MD Sacramento, California, USA

Distance: 14772km

Grid location: CM98iq

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna#1 Sloper Antenna  -  40 & 15m Bands with T-Match tuner

Antenna#2 Multi-band dipole with T-Match tuner and 4-1 Current Balun

VK1UN ACT, Australia

Distance: 2659km

Grid location: QF22lf

dBm: 30



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna#1 Sloper Antenna  -  40 & 15m Bands with T-Match tuner

Antenna#2 Multi-band dipole with T-Match tuner and 4-1 Current Balun

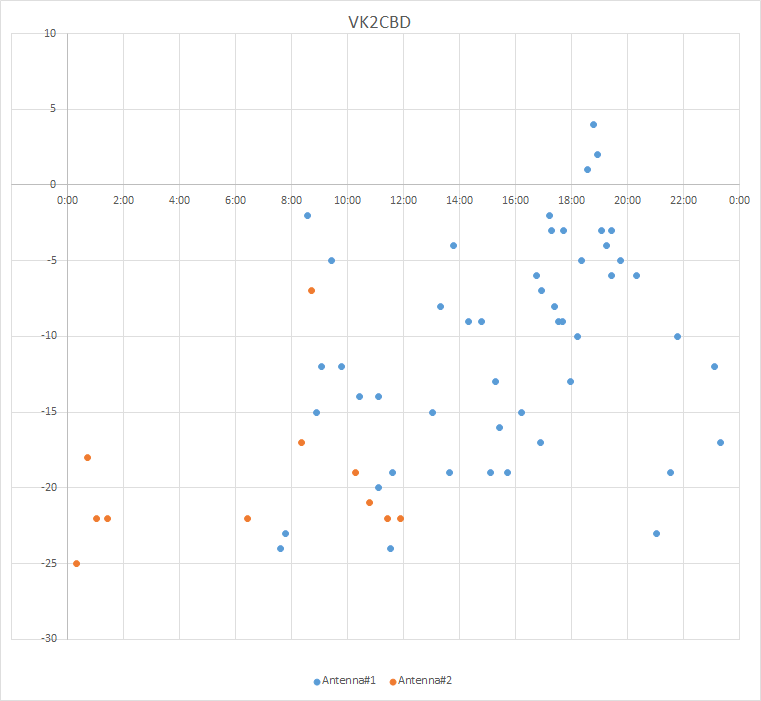

VK2CBD Bonnells Bay, NSW Australia

Distance: 3019km

Grid location: QF43ns

dBm: 30





WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna#1 Sloper Antenna  -  40 & 15m Bands with T-Match tuner

Antenna#2 Multi-band dipole with T-Match tuner and 4-1 Current Balun

VK2EFM KARIONG, NSW Australia

Distance: 3233km

Grid location: QF56pn

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna#1 Sloper Antenna  -  40 & 15m Bands with T-Match tuner

Antenna#2 Multi-band dipole with T-Match tuner and 4-1 Current Balun

VK4MOB WELLINGTON POINT, QLD Australia

Distance: 3543km

Grid location: QG62ol

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna#1 Sloper Antenna  -  40 & 15m Bands with T-Match tuner

Antenna#2 Multi-band dipole with T-Match tuner and 4-1 Current Balun

VK4TDI TARINGA, QLD Australia

Distance: 3521km

Grid location: QG62lm

dBm: 33



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna#1 Sloper Antenna  -  40 & 15m Bands with T-Match tuner

Antenna#2 Multi-band dipole with T-Match tuner and 4-1 Current Balun

ZL1WJQ PUKEKOHE, New Zealand

Distance: 5288km

Grid location: RF72kt

dBm: 30



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna#1 Sloper Antenna  -  40 & 15m Bands with T-Match tuner

Antenna#2 Multi-band dipole with T-Match tuner and 4-1 Current Balun

FR1GZ  MONTAGNE (LA REUNION) received VK6YSF

Distance: 6146km

Grid location: LG79rc

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna#1 Sloper Antenna  -  40 & 15m Bands with T-Match tuner

Antenna#2 Multi-band dipole with T-Match tuner and 4-1 Current Balun

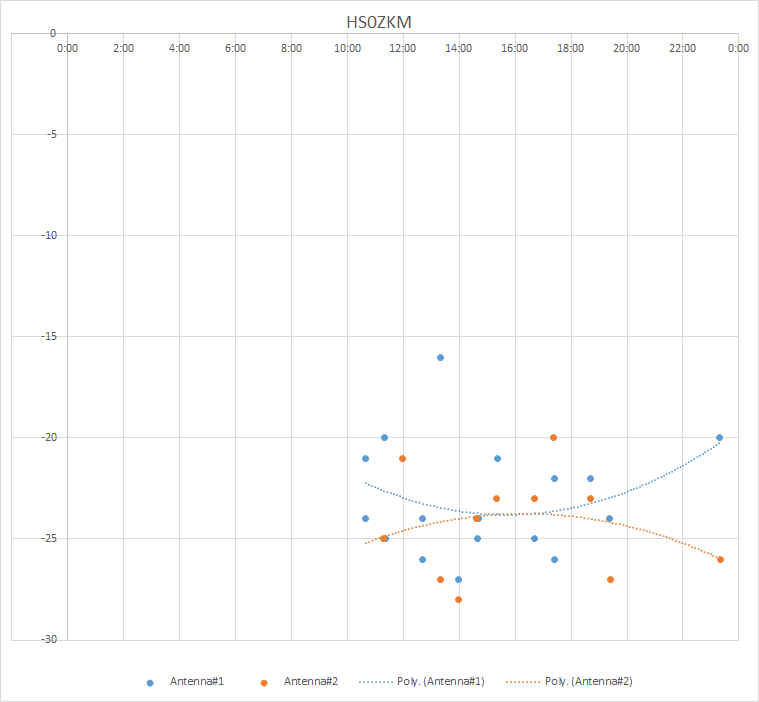

HS0ZKM received VK6YSF

Distance: 5332km

Grid location: OK03gr

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna#1 Sloper Antenna  -  40 & 15m Bands with T-Match tuner

Antenna#2 Multi-band dipole with T-Match tuner and 4-1 Current Balun

K9AN Urbana, IL, USA received VK6YSF

Distance: 17598km

Grid location: EN50wc

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna#1 Sloper Antenna  -  40 & 15m Bands with T-Match tuner

Antenna#2 Multi-band dipole with T-Match tuner and 4-1 Current Balun

VK4MOB WELLINGTON POINT, QLD Australia received VK6YSF

Distance: 3543km

Grid location: QG62ol

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna#1 Sloper Antenna  -  40 & 15m Bands with T-Match tuner

Antenna#2 Multi-band dipole with T-Match tuner and 4-1 Current Balun

VK5EI South Australia received VK6YSF

Distance: 2057km

Grid location: PF95gd

dBm: 30



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna#1 Sloper Antenna  -  40 & 15m Bands with T-Match tuner

Antenna#2 Multi-band dipole with T-Match tuner and 4-1 Current Balun

VK5MR South Australia received VK6YSF

Distance: 1921km

Grid location: PF89kk

dBm: 37
