WSPR - 20m BAND - 31/10/2017
WSPR 20m (14.00 - 14.35 MHz) band activity data recorded from 29/10/2017 to 31/10/2017
Data from the WSPR web site relating to monitoring and transmission from VK6YSF Northam Western Australia.

WSPR Frequency: Dial 14.0956 MHz USB (occupied bandwidth 14.0970 - 14.0972 MHz)

Grid location: OF88II

Local Time = +8:00 hours (0:00 = 8:00AM)

Transmission Power 37 dBm (5Watts)

SSN (Sun Spot Number): 33

Equipment: TS-930 at 5W, Radio computer interface

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                L Antenna:          L Antenna with T-Match tuner



This exercise was to compare the L antenna with the main station antenna used for operations on the 20m amateur band.



Conclusion is that there is no compelling performance deference between the Antennas.



WSPR 20m band activity data recorded from 29/10/2017 to 31/10/2017 showing SNR against UTC time, Vertical axis = dB below the noise floor.



WSPR 20m band activity data recorded from 29/10/2017 to 31/10/2017 showing distance in km against UTC time.

Vertical axis = km



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

               L Antenna:           L Antenna with T-Match tuner

4Z5LF - ASHQELON, ISRAEL - RECEIVED BY VK6YSF

Distance: 11140 km

Grid location: KM71gq

dBm: 40



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

9K2/VO1DZA - ST. JOHN'S, NL Canada - RECEIVED BY VK6YSF

Distance: 9903 km

Grid location: LL49bc

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

DL6NL Schweinfurt, Germany - RECEIVED BY VK6YSF

Distance: 13775 km

Grid location: JO50cb

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

G0CCL CAMBRIDGE, England - RECEIVED BY VK6YSF

Distance: 14499 km

Grid location: JO02bf

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

JA5NVN TOKUSHIMA, Japan - RECEIVED BY VK6YSF

Distance: 7542 km

Grid location: PM74ec

dBm: 33



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

JG1EIQ   KOBE, Japan - RECEIVED BY VK6YSF

Distance: 7632 km

Grid location: PM74ns

dBm: 27



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

K5XL ARLINGTON, TX, USA - RECEIVED BY VK6YSF

Distance: 16841 km

Grid location: EM12kp

dBm: 33



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

KE7A Southlake, TX, USA - RECEIVED BY VK6YSF

Distance: 16846 km

Grid location: EM12kx

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

R0AGL RUSSIA - RECEIVED BY VK6YSF

Distance: 10053 km

Grid location: NO66

dBm: 23



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

VK1JAM ACT AUSTRALIA - RECEIVED BY VK6YSF

Distance: 3013 km

Grid location: QF44mt

dBm: 23



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

VK2EFM Kariong, NSW, AUSTRALIA - RECEIVED BY VK6YSF

Distance: 3233 km

Grid location: QF56pn

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

VK2GZZ SYDNEY, NSW, AUSTRALIA - RECEIVED BY VK6YSF

Distance: 3201 km

Grid location: QF56

dBm: 23



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

VK3FFB VICTORIA, AUSTRALIA - RECEIVED BY VK6YSF

Distance: 2689 km

Grid location: QF22pe

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

VK5AAR YORKETOWN, SA, AUSTRALIA - RECEIVED BY VK6YSF

Distance: 2053 km

Grid location: PF98fc

dBm: 40



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

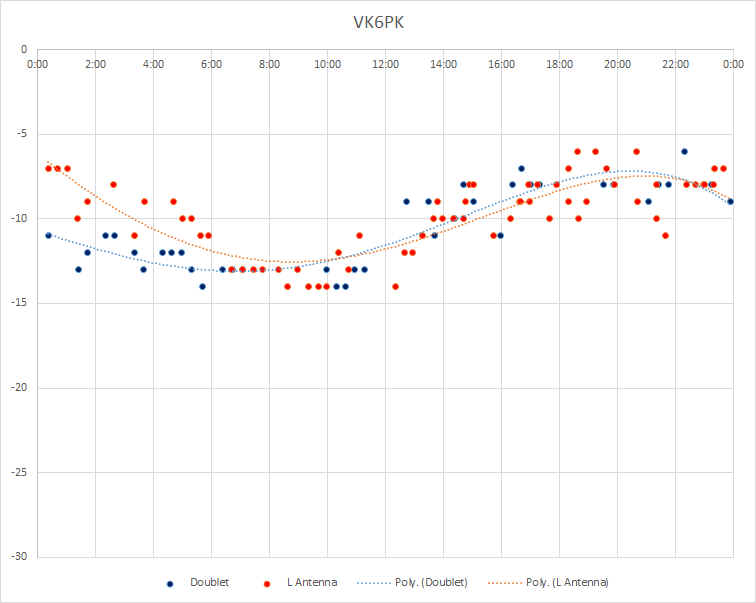

VK6PK WOOROLOO, WA, AUSTRALIA - RECEIVED BY VK6YSF

Distance: 37 km

Grid location: OF88ee

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

VK7VF TASMANIA, AUSTRALIA - RECEIVED BY VK6YSF

Distance: 2779 km

Grid location: QE28tu

dBm: 23



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

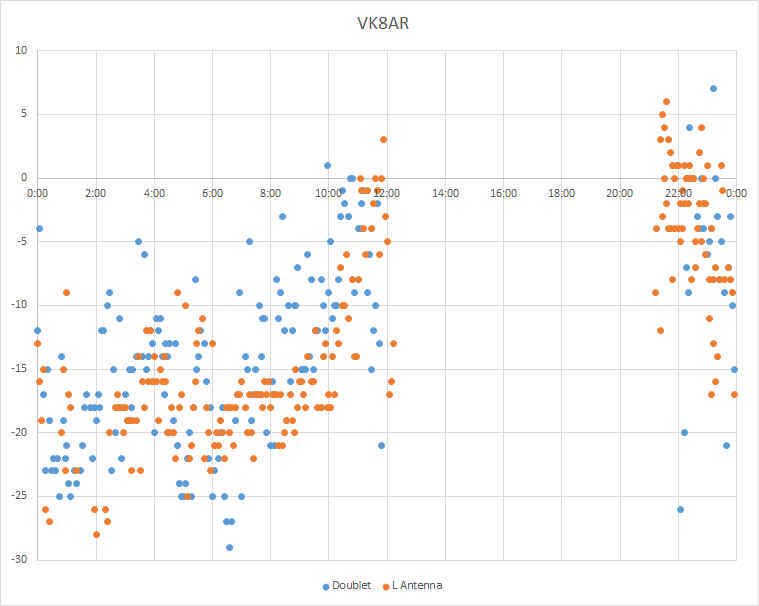

VK8AR Alice Springs, NT, AUSTRALIA - RECEIVED BY VK6YSF

Distance: 1905 km

Grid location: PG66wh

dBm: 23



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

VK8ZI Sanderson, NT, AUSTRALIA - RECEIVED BY VK6YSF

Distance: 2521 km

Grid location: PH57ef

dBm: 23



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

WA8KNE FL, USA - RECEIVED BY VK6YSF

Distance: 18278 km

Grid location: EM90gg

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

ZL1TJK TOKOROA New Zealand - RECEIVED BY VK6YSF

Distance: 5352 km

Grid location: RF71ws

dBm: 33



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

VK6YSF WSPR Signal received by: EA8BFK

Islas Canarias, Spain
Canary Islands

Distance: 15291km

Grid location: IL38bo

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

VK6YSF WSPR Signal received by: JH3APN

Japan

Distance: 7637km

Grid location: PM74tq

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

VK6YSF WSPR Signal received by: VK2DVM

NSW Australia

Distance: 3222km

Grid location: QF56og

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

VK6YSF WSPR Signal received by: VK3FFB

Heathmont, Australia

Distance: 2689km

Grid location: QF22pe

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

VK6YSF WSPR Signal received by: VK3TXR

Victoria, Australia

Distance: 2563km

Grid location: QF12wj

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

VK6YSF WSPR Signal received by: VK5EI

PARAFIELD GARDENS, SA, Australia

Distance: 2057km

Grid location: PF95gd

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

VK6YSF WSPR Signal received by: VK5MR

Roxby Downs, SA, Australia

Distance: 1921km

Grid location: PF89kk

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

VK6YSF WSPR Signal received by: VK6PK

WOOROLOO, WA, AUSTRALIA

Distance: 37 km

Grid location: OF88ee

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

VK6YSF WSPR Signal received by: VU3KAZ

Bangalore, India

Distance: 6467 km

Grid location: MK82tu

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

Antenna:  Doublet Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun

                 L Antenna:           L Antenna with T-Match tuner

VK6YSF WSPR Signal received by: ZL1TJK

TOKOROA, New Zealand

Distance: 5352 km

Grid location: RF71ws

dBm: 37
