WSPR - 160m BAND - 03-05/05/2017
WSPR 160m (1.80 - 1.87MHz) band activity data recorded for a 2 day period 03-05/09/2017
Data from the WSPR web site relating to monitoring from VK6YSF Northam Western Australia.

WSPR Frequency: Dial 1.8366MHz USB (occupied bandwidth 1.8380 - 1.8382 MHz)

Grid location: OF88II

Local Time = +8:00 hours (0:00 = 8:00AM)

RX Only

SSN (Sun Spot Number): ?

Equipment: TS-930 at 5W, Radio computer interface

Antenna: Multi-band dipole with T-Match tuner and 4-1 Current Balun





WSPR 160m band activity data recorded for 2 x 24 hour period on the 03-05/09/2017 showing SNR against UTC time, Vertical axis = dB below the noise floor.



WSPR 160m band activity data recorded for 2 x 24 hour period on the 03-04/05/2017 showing distance in km against UTC time.

Vertical axis = km



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

G3KEV

Distance: 14540km

Grid location: IO94sh

dBm: 47



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

NU6O

Distance: 14565km

Grid location: CN70vr

dBm: 43

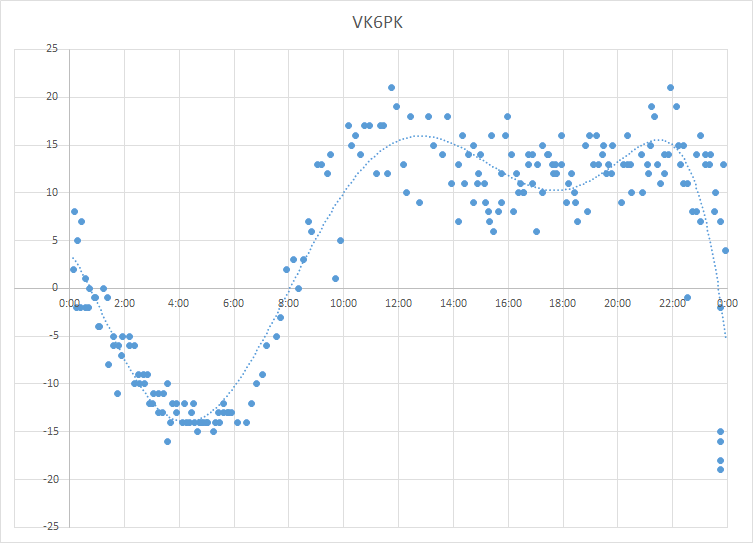

WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

VK6PK

Distance: 37km

Grid location: OF88ee

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

VK7AM

Distance: 2957km

Grid location: QE36nr

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

VK6YSF WSPR Signal received by:VK2KRR

Distance: 2832km

Grid location: QF34mr

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

VK6YSF WSPR Signal received by:VK5MR

Distance: 1921km

Grid location: PF89kk

dBm: 37



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

VK6YSF WSPR Signal received by:VK5ZII

Distance: 1968km

Grid location: PF86tb

dBm: 37





WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

VK6YSF WSPR Signal received by:VK6PK

Distance: 37km

Grid location: OF88ee

dBm: 37
