VHF/UHF GENERIC ANTENNA MOUNT

VHF/UHF Generic Antenna Mount. Install July 2011


The VHF/UHF Generic Antenna Mount consisting of a standard antenna mirror mount bracket with a female to female N connector bulkhead type socket install. The view is that number experimental antennas are to be constructed around the standard male N connectors. This arrangement should be suitable for simple antennas such as 1/4 wave ground plane from frequencies as low as 50MHz to more complex collinear antennas in low GHz bands and represents convenient test bed for trialling various antenna designs.

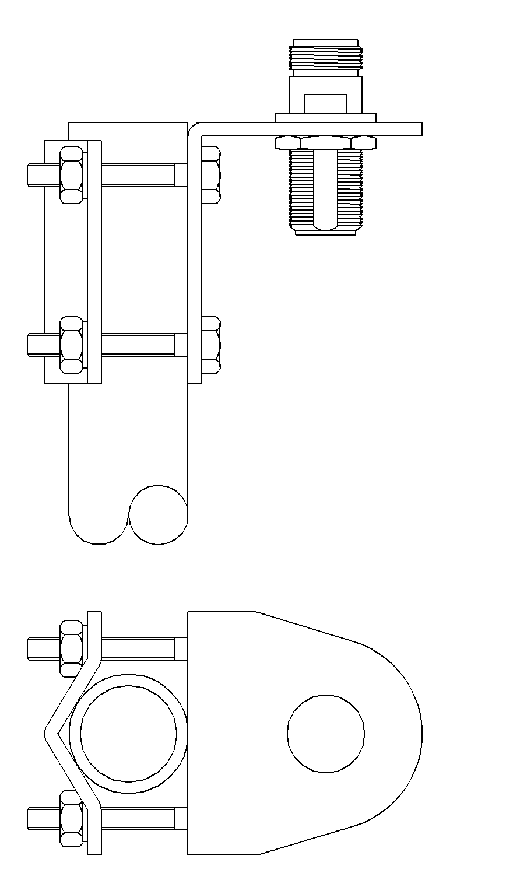

Fig 1   Antenna mount assembly

Fig 1 Antenna mount assembly

An identical Generic Antenna Mount has been constructed for workshop assembly and testing purposes.

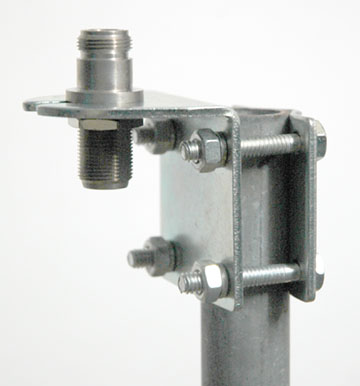

Photo 1   Antenna mount assembly

Photo 1 Antenna mount assembly

Details of the installed on the Generic Antenna Mount. See: ACTIVE ANTENNA V1

Details of 146MHz Cloverleafinstalled on the Generic Antenna Mount. See: CLOVER-LEAF ANTENNA - 146.5MHz

Details of 435MHz Cloverleafinstalled on the Generic Antenna Mount. See: CLOVER-LEAF ANTENNA - 435.0MHz

Details of 146MHz Ground Plan Antenna installed on the Generic Antenna Mount. See: GROUND PLANE ANTENNA - 146MHz

Details of 435MHz Ground Plan Antenna installed on the Generic Antenna Mount. See: GROUND PLANE ANTENNA - 435MHz

Details of 435MHz Skew Planar Antenna installed on the Generic Antenna Mount. See: SKEW PLANAR ANTENNA - 435MHz
