VK6RTU - BEACON
- KALGOORLIE
Operational details of the VK6RTU
beacon.
HOME > OPERATIONAL
>
Technical
| Output
Frequency (MHz) : |
50.468
MHz
144.572 MHz
432.572 MHz
|
| Power
(Watts) : |
10W |
| Latitude
(GDA94): |
-30.75051 |
| Longitude
(GDA94): |
121.46776 |
| Location
: |
PF09RF |
| HASL
(m) : |
374 |
| ACMA Site ID |
10021119 |
|
|
The
beacon radio equipment Assembly for 6m is a Philips FM880,
2m is a Philips
and a 70cm Tait t2000 radio.
The
radios and keyer were put together by Will (VK6UU)

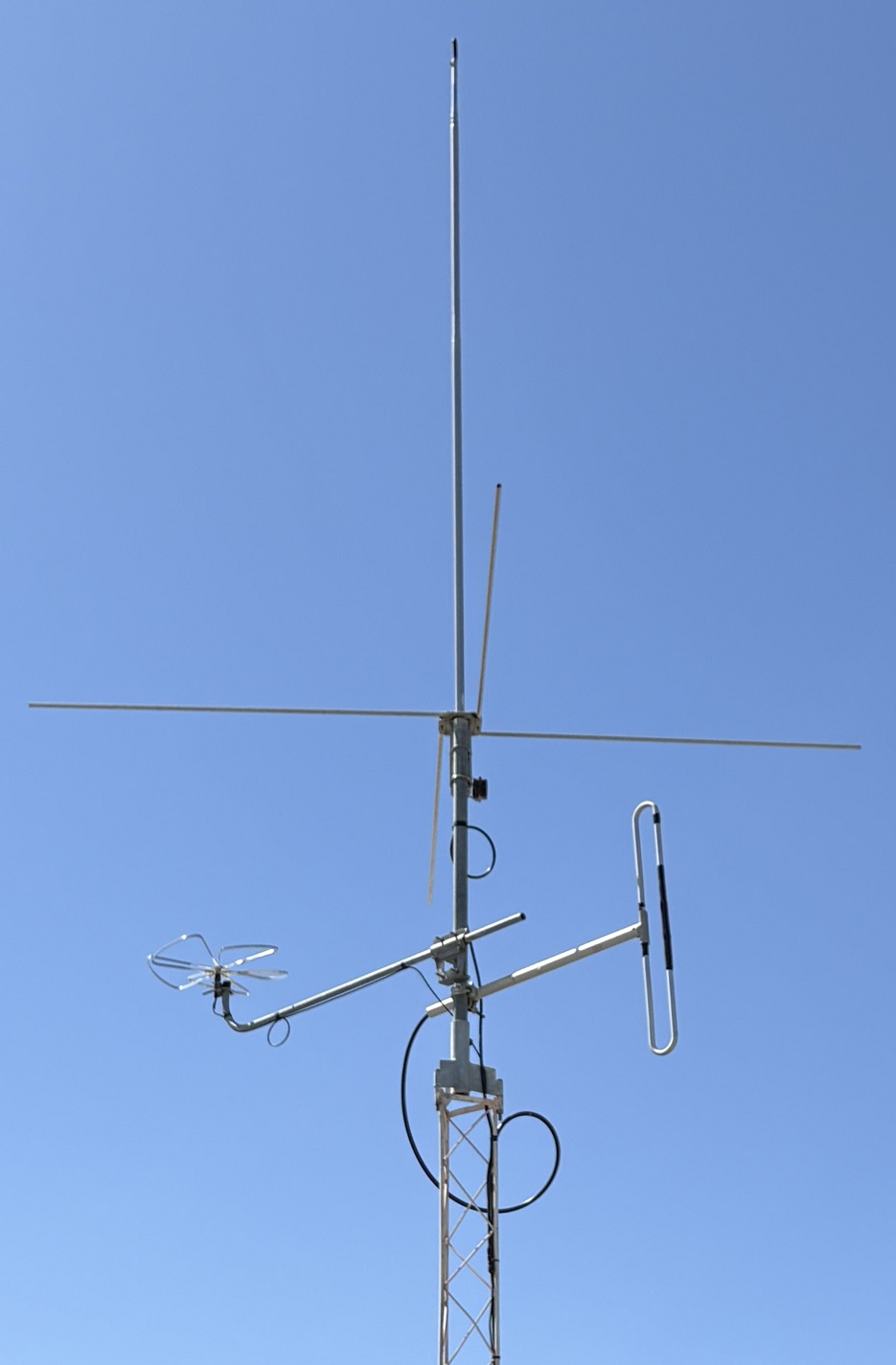

Beacon
antennas, equipment and site PHOTOS
 |

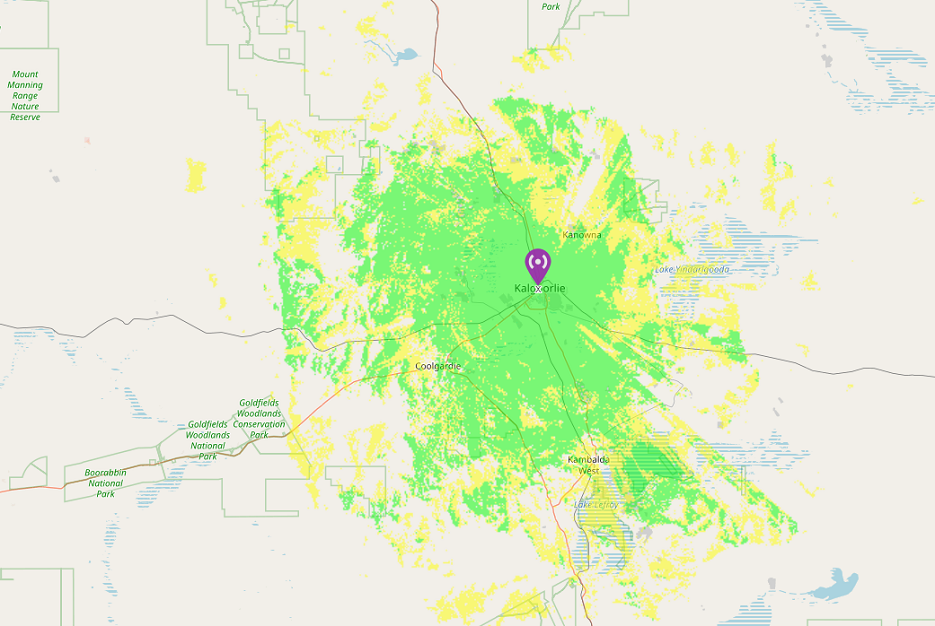

| Fig 1 6m
Band (50.468
MHz) Radiation footprint
|
 |

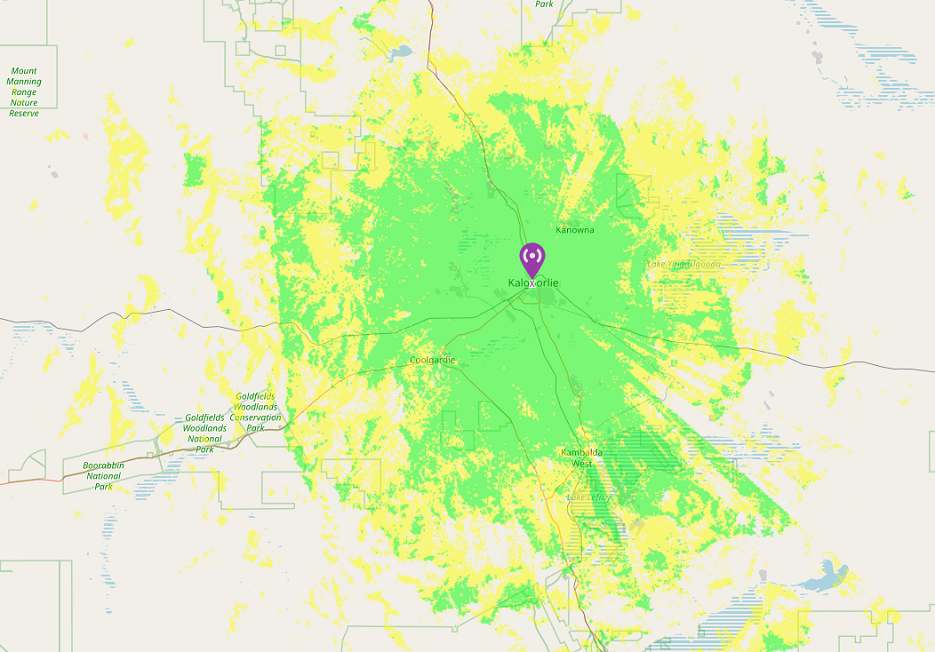

| Fig 2 2m
Band (144.572 MHz) Radiation footprint
|
 |

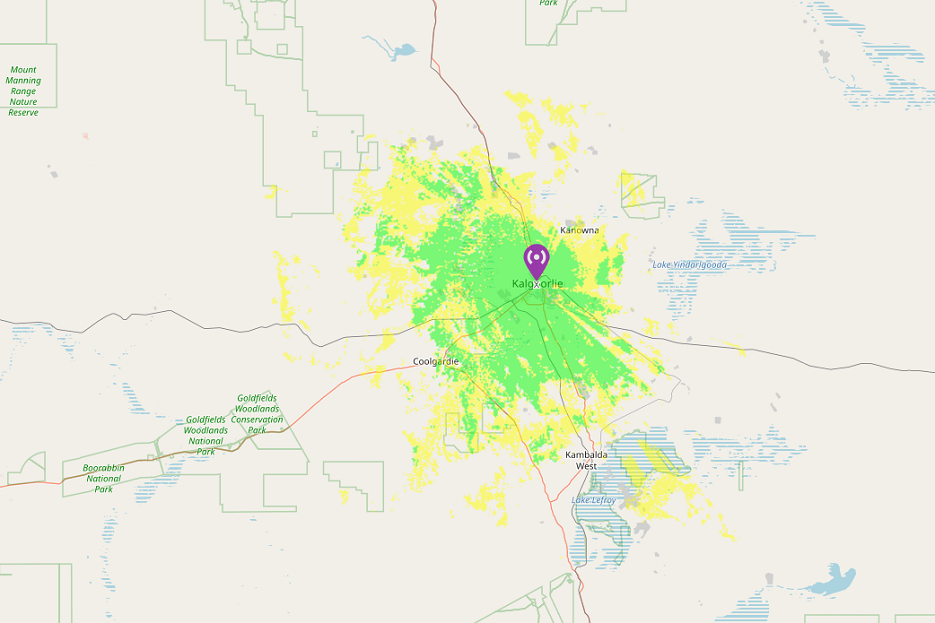

| Fig 3 70cm
Band (432.572 MHz) Radiation footprint
|
The above radiation foot-print was produced using
Radio Mobile
Work
Log
Beacon
antennas, equipment and site PHOTOS
TOP
OF PAGE
Page initiated 25
September, 2026
Page
last revised 26 September, 2026
|
|
|
