WSPR - 10m BAND - 5 ~ 10/12/2018
WSPR 10m (28.00 - 29.70 MHz) band activity data recorded for a 5 x 24 hour periods on the 05 ~ 10/12/2018
Data from the WSPR web site relating to monitoring and transmission from VK6YSF Northam Western Australia.

WSPR Frequency: Dial 28.1246 MHz USB (occupied bandwidth 28.1260 - 28.1262 MHz)

Grid location: OF88II

Local Time = +8:00 hours (0:00 = 8:00AM)

SSN (Sun Spot Number): 05/12/2018  16

                                      06/12/2018  17

                                      07/12/2018  16

                                      08/12/2018  12

                                      09/12/2018  12

                                      10/12/2018  12

Equipment: TS-930 at 5W, Radio computer interface

Antenna:    Sloper Antenna  -  40 & 15m Bands with T-Match tuner





This exercise was to test possible band openings on the 10m amateur band.



Conclusion







WSPR 10m band activity data recorded for 5 x 24 hour period on the 05 ~ 10/12/2018 showing SNR against UTC time, Vertical axis = dB below the noise floor.

WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

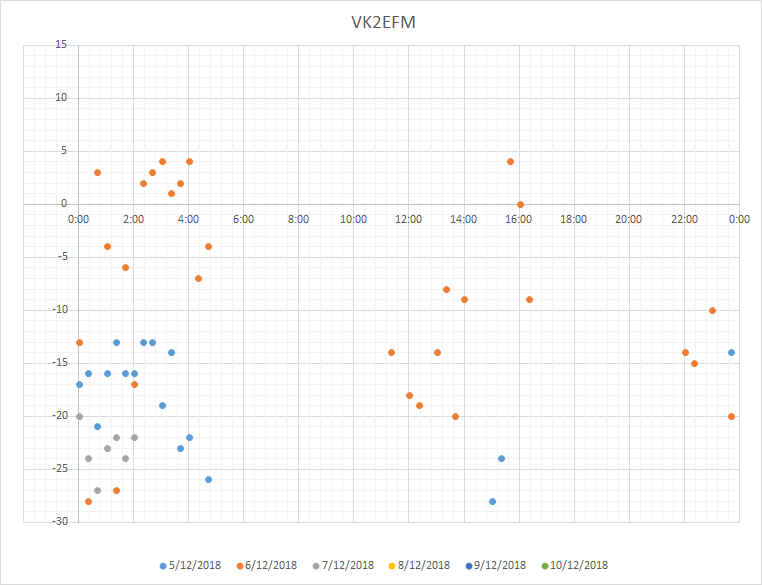

WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

VK2EFM NSW AUSTRALIA - RECEIVED BY VK6YSF

Distance:  3227km

Grid location: QF56oq

dBm: 37 (5W)



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

VK2IJM NSW AUSTRALIA - RECEIVED BY VK6YSF

Distance:  3215km

Grid location: QF56ni

dBm: 40 (10w)



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

VK2ZMT NSW AUSTRALIA - RECEIVED BY VK6YSF

Distance:  3277km

Grid location: QF57ua

dBm: 40 (10W)



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

VK3KCX VICTORIA AUSTRALIA - RECEIVED BY VK6YSF

Distance:  2697km

Grid location: QF22qd

dBm: 47 (50W)



WSPR data has been graphed using Excel. Horizontal axis = UTC Time, Vertical axis = dB below the noise floor.

VK35ST SA AUSTRALIA - RECEIVED BY VK6YSF

Distance:  2101km

Grid location: PF95ml

dBm: 33 (2W)
