10MTR BAND FM FREQUENCIES
Australian operational 10m FM frequencies. Repeater and simplex

Australian 10m FM Simplex Frequencies

Frequ Designation
29.120 Simplex repeater gateway frequency
29.200 National calling frequency
29.600 International simplex calling frequency



Australian 10m FM Repeaters

Output Input Call Location Service Area Status ERP HASL T/O Sp CTCSS Notes
29.120 29.120 VK2RMB Terrey Hills Sydney P - 150 - NMW - 1
29.120 29.120 VK2RUW Knights Hill Wollongong P 100 801 4.0 IARS 88.5 2
29.120 29.120 VK4RLB Logan Brisbane O 25 60 4.0 QLB 88.5 3
29.130 29.130 VK5ROH Blue Lake Mount Gambier O - - - SSE 118.8 4
29.620 29.520 VK2RUW Knights Hill Wollongong X 50 801 4.0 IARS - 6
29.620 29.520 VK5RSC Mt Terrible Adelaide O 40 410 3.0 SWI - 7
29.640 29.540 VK3RHF Olinda Melbourne O 100 600 3.0 VSR - 8
29.660 29.560 VK4RKC Ocean View Brisbane O 100 160 5.0 QGG - 9
29.680 29.580 VK6RHF Leeming Perth O 50 300 3.0 WRG 179.9 10 11
29.680 29.580 VK7RHF
Hobart
O
100
280 5.0
TST
91.5



Keys

ERP Effective radiated power (watts)
HASL Height above sea level (metres)
T/O Timeout (minutes)
Sp Sponsor responsible for maintenance
O Operating
T  Testing
P Proposed
X Currently off air



Notes

1 VK2RMB (53.675, 146.875, 438.175 MHz) has simplex gateway on 29.120 MHz.
2 VK2RMP 53.650 and 438.275 are linked. Planned link to simplex gateway VK2RUW 29.120 (access tone 88.5 Hz).
3 VK4RLB (53.725 and 438.750) has simplex gateway on 29.120 MHz. Access tone 88.5 Hz.
4 VK5ROH 439.825 has proposed simplex gateway on 29.130 MHz. Access tone 118.8 Hz.
6 Receiver site Mt Murray.
7 VK5RSC 10 metre receiver site Willunga Hill. VK5RSC has simplex gateway on 147.675. Gateway access tone 141.3 Hz.
8 VK3RHF 29.640, 53.625, 438.750 and 1273.400 are all linked. 10m has three voting receivers (Olinda, horizontal 2 el delta loop yagi; Mt
Macedon, wave vertical; near Yea, ground plane). 6m has two voting receivers (Olinda, wave vertical; Macedon, wave vertical).
70cm has two voting receivers (Olinda, Diamond X6000 vertical; Macedon, 3dB vertical). 70 cm access tone 88.5 Hz. Additional 70cm
repeater and 10m voting receiver proposed for Mt Baw Baw
9 VK4RKC 29.660 and 147.900 are linked.
10 Rx site Bedfordale.
11 VK6RHF 29.680, VK6RAP 53.800, VK6RAP 146.700, VK6RMS 147.250, VK6RBN 147.350 and VK6RUF 438.525 are linked temporarily

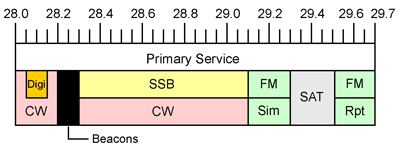

General Australian 10m Band Plan

General Australian 10m Band Plan



28.000 - 28.200 CW AND DIGITAL MODES
28.000 - 28.050 CW only
28.050 - 28.150 Digital data modes
28.150 - 28.200 CW only
28.190 - 28.200 IBP Beacons
28.200 - 28.300 Continuous Duty Beacons
28.300 - 29.100 CW / SSB / AM
28.390 Recommended intra-VK calling frequency
28.450 WICEN frequency
28.680 +/- 5 kHz SSTV calling frequency
28.885 International 6 Metre liaison frequency
29.110 - 29.290 FM SIMPLEX
29.120 Simplex repeater gateway frequency
29.200 National calling frequency
29.250 Recommended packet frequency
29.300 - 29.510 AMATEUR SATELLITES
29.510 - 29.700 FM REPEATERS AND SIMPLEX
29.520 - 29.580 Repeater inputs
29.600 International simplex calling frequency
29.620 - 29.680 Repeater outputs



10METRE FM SUB-BAND NOTES

From 29.510 MHz to 29.700, The FM sub-band is usually channelized into repeater and simplex frequencies. The channels are commonly grouped into repeater inputs, simplex, and repeater output frequencies.

Simplex Channel, Worldwide calling FM: 29.600 MHz

Repeater Operation on 10 Metres

Repeater Input Channels: 29.520, 29.540, 29.560, and 29.580 MHz.

Repeater Output Channels: 29.620, 29.640, 29.660, and 29.680 MHz.

Common practice for 10 metre repeaters is to use a 100 kHz negative offset for repeater operation. Due to the very few available repeater channels, "odd-splits" (offsets differing from 100 kHz) and non-standard frequencies are not uncommon. Since 10 metres can frequently open up to propagate globally, most 10 metre repeaters use a CTCSS sub-audible access tone. 16 kHz wide signals with 5 kHz deviation is normal in this band. 8 kHz narrow signals with 2.5 kHz deviation can also be found.

Other FM Simplex Channels in use

29.300 MHz is a common frequency to find JA hams on. British hams commonly use the 29.400 to 29.500 MHz band for FM as well with 29.400, 29.450, and 29.500 MHz being common. USA hams can be found on FM anywhere above 29.000 MHz, commonly on the above frequencies talking to overseas hams. 29.200 to 29.300 MHz is set aside in some area band plans for FM Simplex use.

For more information on the 10m band. See: http://en.wikipedia.org/wiki/10-meter_band
