YAESU FRG7
The Yaesu
FRG-7 is an all solid state synthesized communications receiver
designed to cover 500 KHz to 29.9 MHz. The FRG-7 is a triple
conversion super heterodyne receiver utilizing the Wadley Loop System.
Below
are the detailed technical specifications and features for the Yaesu
FRG-7
|
General
Specification
|
Details
|
|
Type
|
General
Coverage HF Communications Receiver
|
|
Manufacturer
|
Yaesu
Musen Co. Ltd (Japan)
|
|
Model
Years
|
Introduced
~1976
|
|
Frequency
Coverage
|
500
kHz 29.9 MHz (continuous) in 1 MHz bands
|
|
Operating
Modes
|
AM,
USB, LSB, CW
|
|
Tuning
Method
|
Wadley
Loop system (drift-free tuning)
|
|
Dial
Readout
|
Analog
main dial + MHz band switch (in 1 MHz steps)
|
|
Power
Supply
|
120/220/240
VAC (internal) or 13.8 VDC (external DC jack)
|
|
Antenna
Input
|
SO-239
(50 ohm), Hi-Z screw terminals
|
|
Dimensions
(WืHืD)
|
330
ื 165 ื 260 mm (13 ื 6.5 ื 10.2 in) approx.
|
|
Weight
|
~6.5
kg (14.3 lbs)
|
|
Receiver
Specification
|
Details
|
|
Receiver
Type
|
Triple
Conversion Superheterodyne
|
|
IF
Frequencies
|
1st:
55.845 MHz
|
|
2nd:
3.395 MHz
|
|
3rd:
455 kHz
|
|
Stability
|
Excellent
(Wadley Loop eliminates main oscillator drift)
|
|
Sensitivity
|
AM:
~1 ตV for 10 dB S+N/N
|
|
SSB/CW:
~0.5 ตV
|
|
Selectivity
|
~4
kHz @ 6 dB (standard ceramic filter)
|
|
Rejection
|
>60
dB (typical)
|
|
AGC
|
Yes
(automatic gain control, non-adjustable speed)
|
|
S-Meter
|
Analog
(mechanically damped needle type)
|
|
Audio
Output
|
~2 W
into 8 ohms
|
|
Audio
Connectors
|
1/4"
headphone jack, external speaker terminals
|
|
Bandwidth
|
Fixed
(no variable bandwidth or IF filtering options)
|

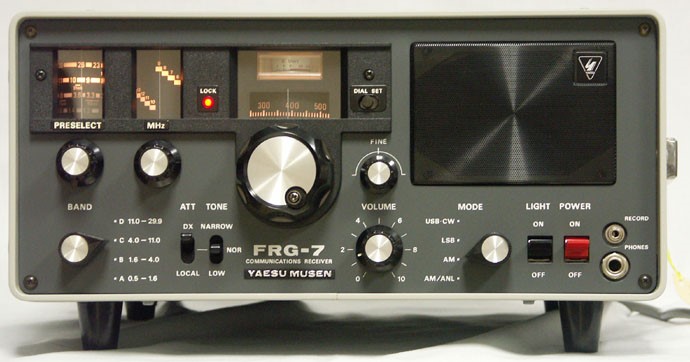

Photo 1
Yaesu
FRG-7
communications receiver.
Features
& Controls
-
Wadley
Loop Circuitry
Provides stable, drift-free operation across full HF
spectrum
1 MHz band segments selected via MHz switch
Fine tuning via analog dial
-
Mode
Selector AM / USB / LSB / CW
-
Preselector
Tunable front-end for peak performance
-
BFO
Built-in for CW/SSB demodulation
-
Built-in
Speaker 3" internal speaker for onboard listening
-
External
Power Jack 13.8 VDC input for mobile/portable operation
-
Front
Panel Metering Signal strength (S-meter)
The
Wadley Loop is a clever radio frequency conversion technique
developed in the 1950s by Dr. Trevor Wadley, a South African
engineer. It was designed to eliminate oscillator drifta major
problem in analog receivers before the widespread use of
phase-locked loops (PLLs) and digital synthesizers.
It
was most famously used in radios like the Racal RA-17, Yaesu FRG-7,
and others that needed stable tuning over wide frequency ranges.
Receiver
review:
https://medxr.blogspot.com/2020/07/retro-receiver-review-16-yaesu-frg-7.html
