FLTSATCOM-7
(USA-20)
FLTSATCOM-7
(USA-20)
Background and technical
overview.
HOME >
OPERATIONAL
> MODES
& FREQUENCIES > SATELLITES
- RADIO TARGETS >
The old FLTSATCOM spacecraft had relatively simple repeater architecture. Some of its UHF transponders did not provide the sort of modern authentication and access control we associate with contemporary military satellite systems.
Consequently, unauthorized users discovered that they could transmit on the satellite uplink and hear their signals come back down over a huge area.
Details
| Satellite: |
FLTSATCOM-7
(USA-20) |
| Norad ID: |
17181 |
| Operator: |
US Navy |
| Status: |
Operational,
however superseded by MUOS. |
| Frequency Range: |
240.0 -
270.0 MHz VHF Down Link
|
| Mode: |
FM |
| Altitude [km]: |
36000 +/-
Near-geosynchronous, near-equatorial (Junkyard orbit) drifting
westward. |
| Tracking: |
https://www.n2yo.com/?s=17181&live=1 |
FLTSATCOM 7 (F7 / USA-20), the applicable historical frequency plan is Bravo. The FLTSATCOM architecture had 23 RF channels: ten 25-kHz channels, twelve 5-kHz narrowband channels, and one 500-kHz wideband channel.
Channel
confirmation was achieved by monitoring the channel frequency for
consistency with the band plan, verifying the bandwidth and antenna
targeting to assess the SNR (signal-to-noise ratio).
|
|
Bandwidth |
Status |
| 250.075 |
25
kHz |
Fleet
Broadcast - No channel noise floor heared |
| 251.95 |
25
kHz |
Appears
to FLTSATCOM 7. Not listed |
| 252.05 |
25
kHz |
Navy
relay - Confirmed 2026 |
| 253.75 |
25
kHz |
Navy
relay - Confirmed 2026 |
| 255.45 |
25
kHz |
Navy
relay - Confirmed 2026 |
| 257.05 |
25
kHz |
Navy
relay - Confirmed 2026 |
| 258.55 |
25
kHz |
Navy
relay - Confirmed 2026 |
| 265.45 |
25
kHz |
Navy
relay - No channel noise floor heared |
| 266.95 |
25
kHz |
Navy
relay - No channel noise floor heared |
| 268.35 |
25
kHz |
Navy
relay - No channel noise floor heared |
| 269.85 |
25
kHz |
Navy
relay - No channel noise floor heared |
| 244.045 |
5
kHz |
AFSATCOM
narrowband - Confirmed 2026 |
| 244.055 |
5
kHz |
AFSATCOM
narrowband - Confirmed 2026 |
| 244.06 |
5
kHz |
AFSATCOM
narrowband - No channel noise floor heared |
| 244.065 |
5
kHz |
AFSATCOM
narrowband - Confirmed 2026 |
| 244.07 |
5
kHz |
AFSATCOM
narrowband - No channel noise floor heared |
| 244.075 |
5
kHz |
AFSATCOM
narrowband - Confirmed 2026 |
| 244.08 |
5
kHz |
AFSATCOM
narrowband - No channel noise floor heared |
| 244.085 |
5
kHz |
AFSATCOM
narrowband - Confirmed 2026 |
| 244.09 |
5
kHz |
AFSATCOM
narrowband - No channel noise floor heared |
| 244.095 |
5
kHz |
AFSATCOM
narrowband - Confirmed 2026 |
| 244.1 |
5
kHz |
AFSATCOM
narrowband - No channel noise floor heared |
| 244.11 |
5
kHz |
AFSATCOM
narrowband - No channel noise floor heared |
| 261.950–262.450 |
500
kHz |
Wideband
- No channel noise floor heard. |
Reception Reports
| Date |
Time |
Frequency |
Details |
| 24
Sept. 2026 |
00:58Z |
252.050 MHz |
Strong transponder noise floor. No signals. Another strong transponder at 251.950 MHz that is consistent in strength with FLTSATCOM-7, however not consistent with known band plan.
|
|
Antenna: |
5 Element Yagi for 250MHz.
https://vk6ysf.com/yagi_250mhz_5el_20220925.html |
| Software: |
SDR Software: SDR++Brown |
| |
|
|

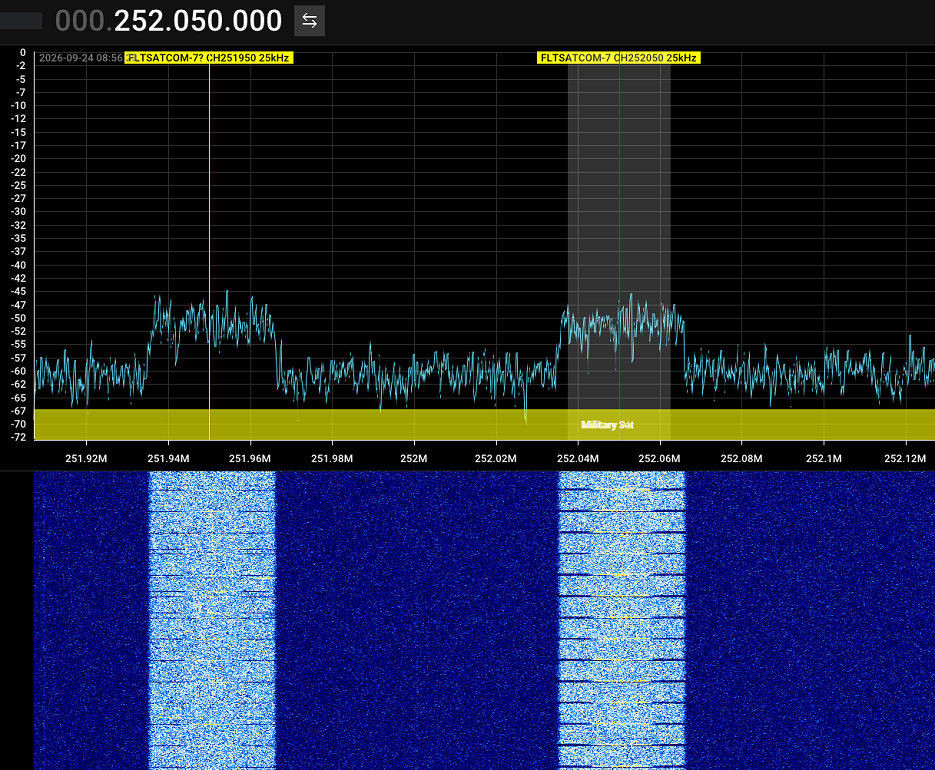

| Screenshot 1 Strong transponder noise floors |
References
TOP
OF PAGE
Page initiated 19 September, 2026
Page
last revised 24 September, 2026
|
|
|
