SKYNET 5A
SKYNET 5A Background and technical
overview.
HOME >
OPERATIONAL
> MODES
& FREQUENCIES > SATELLITES
- RADIO TARGETS >
SKYNET 5A is a British military communications satellite operated for the UK Ministry of Defence (MOD). It is part of the SKYNET 5 family, which provides secure satellite communications for UK forces and allied users. The current SKYNET 5 constellation still provides much of the UK's SATCOM capability.
There is documented history of pirate/unauthorised activity being heard through SKYNET 5A's UHF transponders, although it appears to be much less prominent in the published monitoring literature than the well-known FLTSATCOM/UFO pirate activity.
Details
| Satellite: |
Skynet 5A |
| Norad ID: |
30794 |
| Operator: |
UK military |
| Status: |
Operational
over the Indian Ocean. |
| Frequency Range: |
243 -
259 MHz VHF Down Link
X Band:
7 - 8 GHz
|
| Mode: |
FM |
| Altitude [km]: |
35800
km |
| Orbital position |
Longitude:
95.23° |
| Tracking: |
https://www.n2yo.com/?s=30794&live=1 |
Channel
confirmation was achieved by monitoring the channel frequency for
consistency with the band plan, verifying the bandwidth and antenna
targeting to assess the SNR (signal-to-noise ratio).
|
|
Bandwidth |
Status |
| 245.850 MHz |
25/38kHz |
Confirmed
(38kHz) 26 Sept, 2026 |
| 249.480 MHz |
8kHz |
|
| 249.530 MHz |
8kHz |
|
| 249.850 MHz |
8kHz |
|
| 249.920 MHz |
38kHz |
|
| 253.700 MHz |
38kHz |
Same
allocation as Skynet 5D |
| 257.450 MHz |
25kHz |
|
| 261.100 MHz |
25kHz |
Confirmed
(38kHz) 26 Sept, 2026 ? |
Reception Reports
|
|

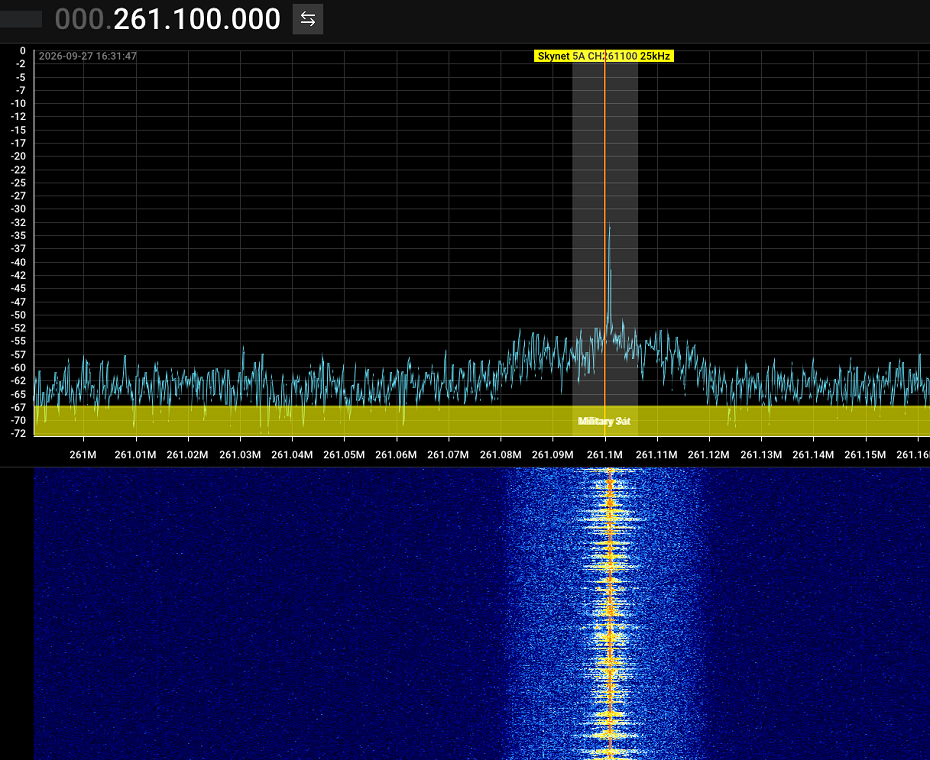

| Screenshot 1 Strong transponder noise floor. No signals. |
 |

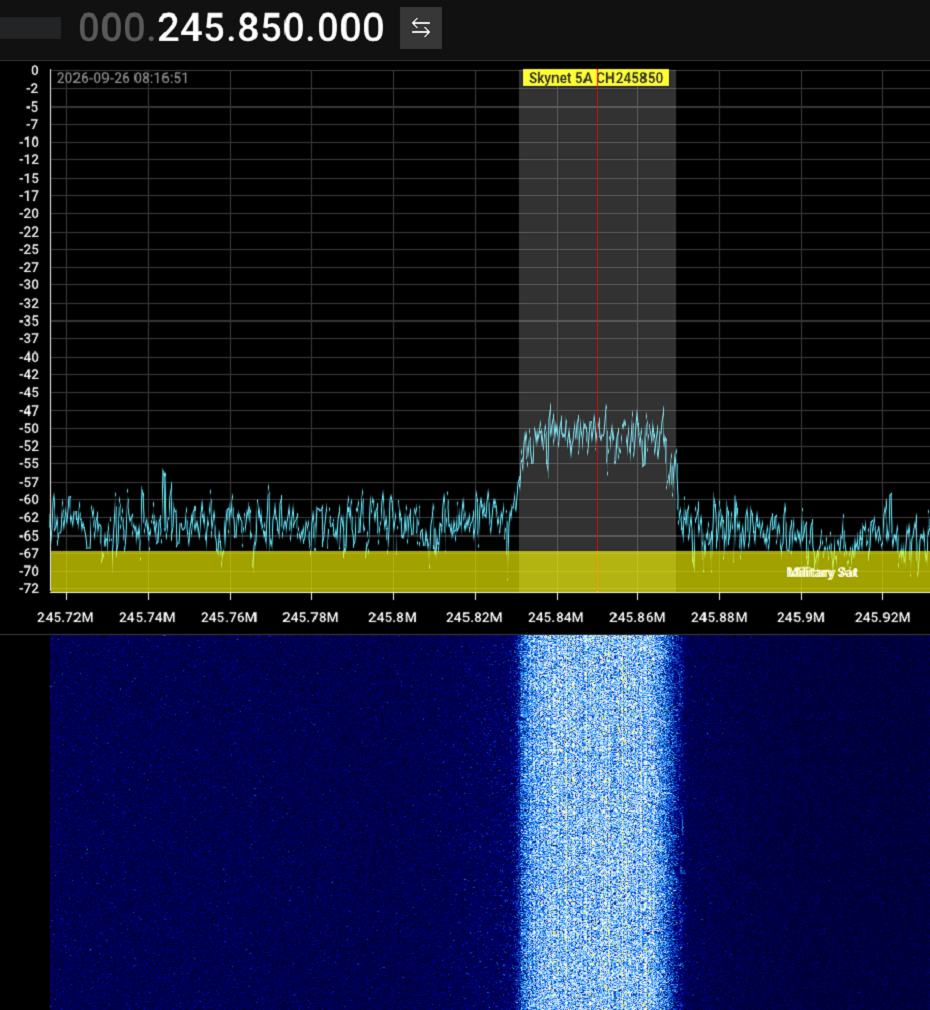

| Screenshot 2 Russian radio pirate broadcast on UK Military satellite.
10kHz Bandwidth, 20dB above
the noise floor. |
References
TOP
OF PAGE
Page initiated 25 September, 2026
Page
last revised 27 September, 2026
|
|
|
