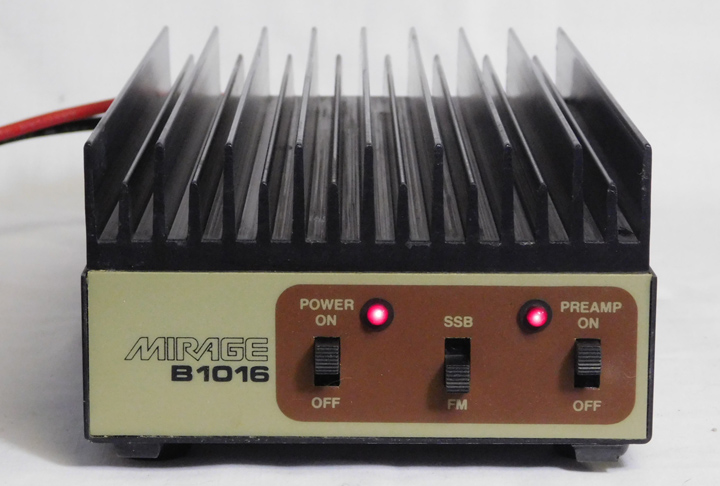

B1016 2M AMPLIFIER The Mirage
B1016 2 meter amplifier produces 160 watts with 10 watts of drive.
Modes include FM, SSB and CW.
Below
are the detailed technical specifications and features for the Mirage
B1016
|
General
Specification
|
Details
|
|
Type
|
VHF
Linear Amplifier (2 m)
|
|
Frequency
Range
|
144–148
MHz
|
|
Operating
Modes
|
FM,
SSB, CW
|
|
Power
Supply
|
13.8
VDC ±10% (Direct DC input, fused)
|
|
Current
Draw
|
Approx.
20 A @ full power
|
|
Cooling
|
Internal
fan-cooled heat sink (active cooling)
|
|
Dimensions
(W×H×D)
|
~280
× 60 × 190 mm (11 × 2.4 × 7.5 in) approx.
|
|
Weight
|
~2.5
kg (5.5 lbs) approx.
|
|
Connectors
|
SO-239
(input/output), RCA (PTT), 12V DC power terminals
|
|
Transmitter
Specification
|
Details
|
|
Input
Power Range
|
1–20
W (drive adjustable; overdrive protection included)
|
|
Output
Power
|
160 W
PEP (SSB/CW)
|
|
100 W
carrier (FM)
|
|
(actual
output may vary slightly depending on voltage and SWR
conditions)
|
|
Gain
|
~13
dB typical
|
|
Modes
Supported
|
FM
– full duty cycle
|
|
SSB/CW
– requires PTT control or VOX
|
|
PTT
Keying
|
Automatic
RF sensing (VOX)
|
|
|
External
PTT (RCA jack) – preferred for SSB
|
|
Harmonics
Suppression
|
60 dB
or better (typical, compliant with FCC specs)
|
|
SWR
Protection
|
Built-in
automatic shutdown or power reduction
|
|
Overheat
Protection
|
Thermal
shutdown circuit
|
|
Preamp
Specification
|
Details
|
|
Preamp
Type
|
Low-noise
transistor amplifier
|
|
Frequency
Range
|
144–148
MHz
|
|
Gain
|
~10–12
dB typical
|
|
Noise
Figure
|
~2 dB
or better (approximate)
|
|
Insertion
Loss (when off)
|
Negligible
(<0.5 dB)
|
|
Input/Output
Impedance
|
50
ohms
|
|
Control
|
Front-panel
toggle switch (Preamp ON/OFF)
|
|
Protection
|
Automatically
bypassed during transmit
|
Features
-
Automatic
RF VOX – senses drive signal to enable TX automatically
-
Manual
PTT control – RCA jack for keyed operation (preferred on SSB)
-
Active
Cooling System – internal fan activates under load
-
LED
Indicators – TX and power status
-
Solid-state
rugged MOSFET or bipolar devices
-
Built-in
preamp (in some versions – check specific unit)
